Page 32
ecom-EN3
4.8.3 Search word
If the plant code is known, it is possible to find the plant data stored with help of a search
machine. Select hereto "Search word" and confirm with <Enter>. Using the software
keyboard, input at least 3 connected figures of the plant
After input completion, press <F1> to start the search. All files matching this code will be
filtered. The resulting selection can be scrolled using the cursor keys:
- <F1> for selection start
- <F2> for selection end
Example: "25.09" for plant code 25.09.2009
Once found, activate the desired data record with <Enter>. The last measurement on this
plant can be viewed pressing <Enter> / „View memory“ / <Enter>.

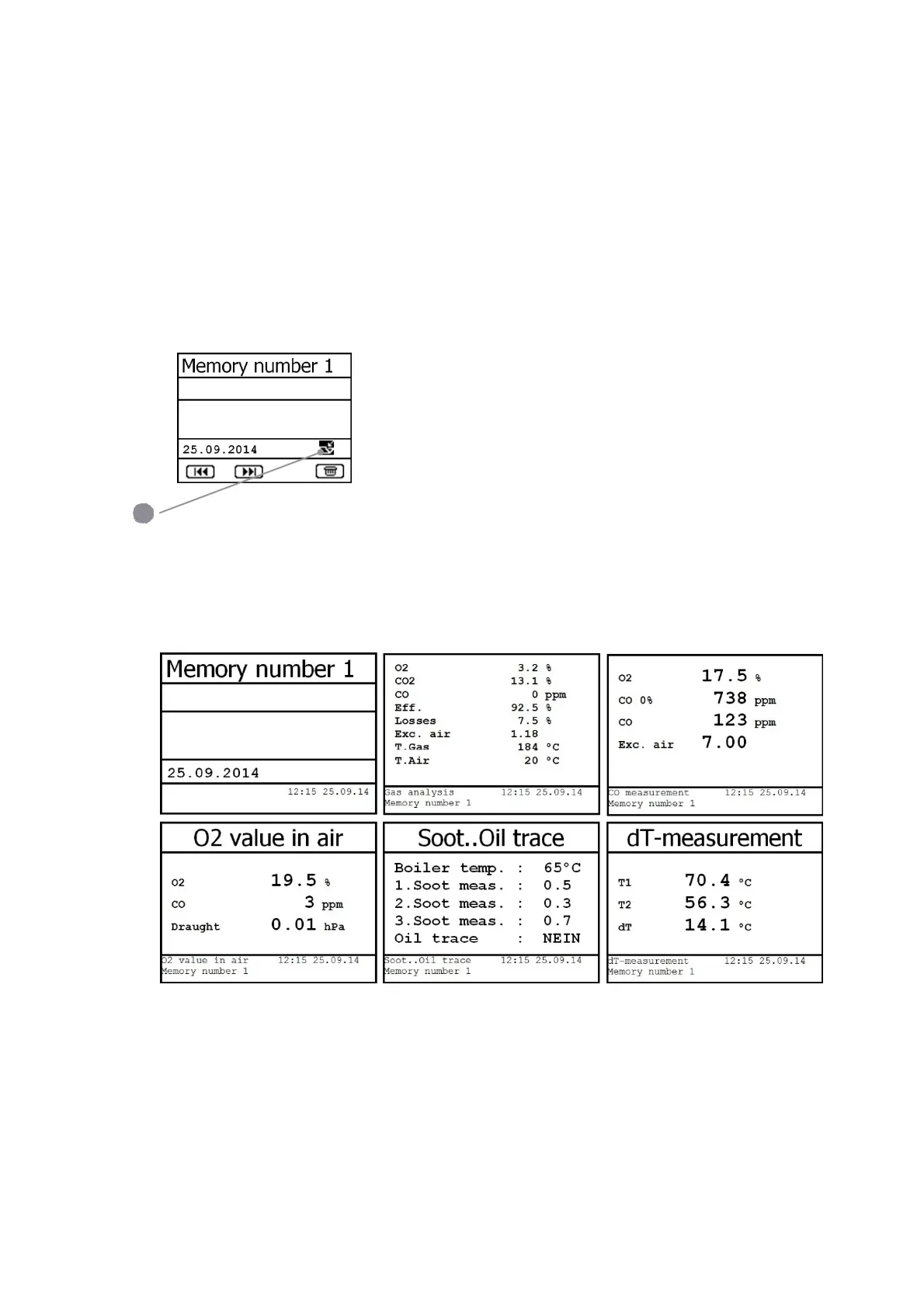

All measured and calculated values can be called up on 5 display pages, using the cursor
keys to step thru.
Press <ESC> to escape the previous measurement data and the recording of the current data
can start.
