Service manual Cinquecento12 (VA21) [MANUY2V.SB0] ed.1 ver.0.1.doc pag.20 - 09/11/2021
ADAPTER FITTING

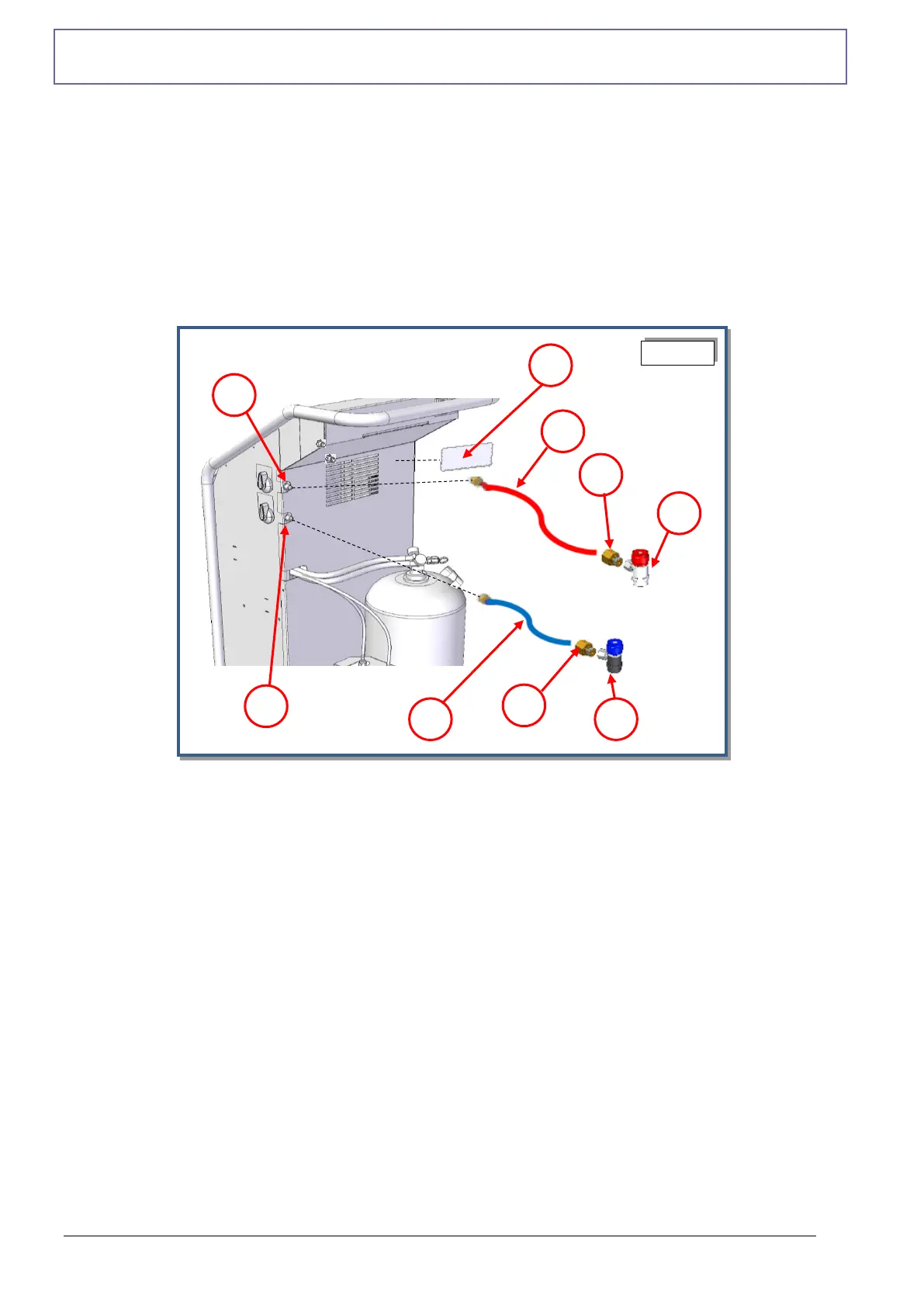

With reference to figure 2a:
1. Pre-assemble LP connection (5) on adapter fitting (11)
2. Fit adapter fitting (11) on blue hose (2)
3. Fit the blue hose (2) on the LP fitting of the machine (7)
4. Preassemble HP port (4) on adapter fitting (10)
5. Fit adapter fitting (10) on red hose (1)
6. Fit the red hose (1) on the machine's HP fitting (6)
7. Apply the adhesive gas identification plate (3) in the indicated position
