RELEASE REFRIGERANT SCALE
- In order to remove the protections under the refrigerant scale the locking nut has to be
untightened (ref.1, Fig.3), the bolt (ref.2, Fig.3) has to be unscrewed
- Connect the machine to the electrical supply and switch it on
- Check if the value of refrigerant scale is correct.
LOCK REFRIGERANT SCALE
NOTE: in the event that the equipment has to be transported, the refrigerant bottle scale
should be locked in place as follows:
1. Switch the machine on.
2. Tighten the bolt (ref.2, Fig.3) until the display signals ZERO availability. Tighten the nut
(ref.1, Fig.3)
NOTE: Check that the oil containers are properly placed in their housing

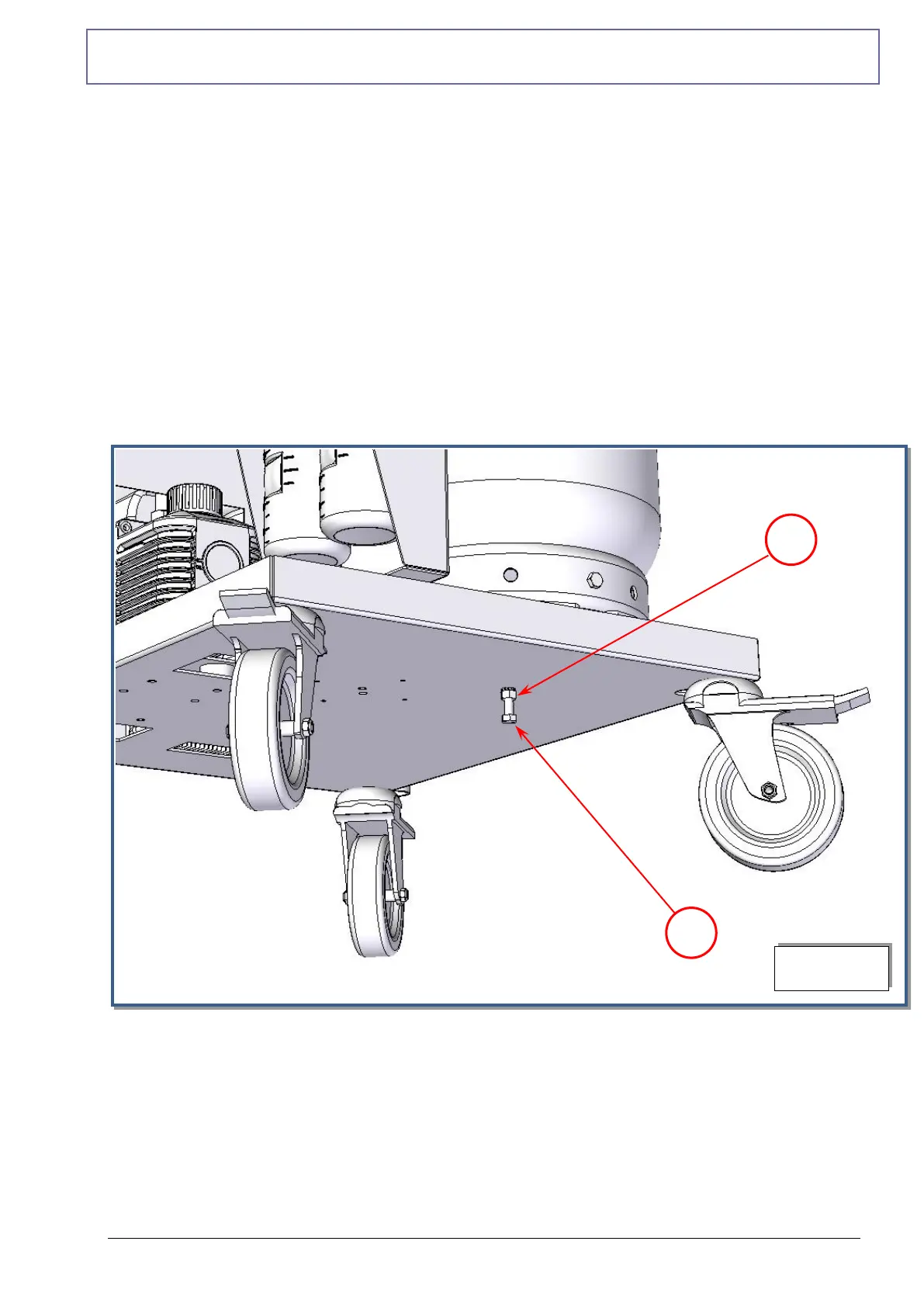

FIG. 3
BOTTLE
RE
LE
AS
E
BO
TT
LE
SC
AL
E
RE
LE
