REPLACE THE NEW OIL CARTRIDGE
When the level of the new oil drops by a few ml it is best to replace the collapsible
cartridge in order to have a sufficient reserve.
Types of oil: use only oil cartridges recommended by the manufacturer. Always refer to the
information provided by the A/C system manufacturer.
Procedure:

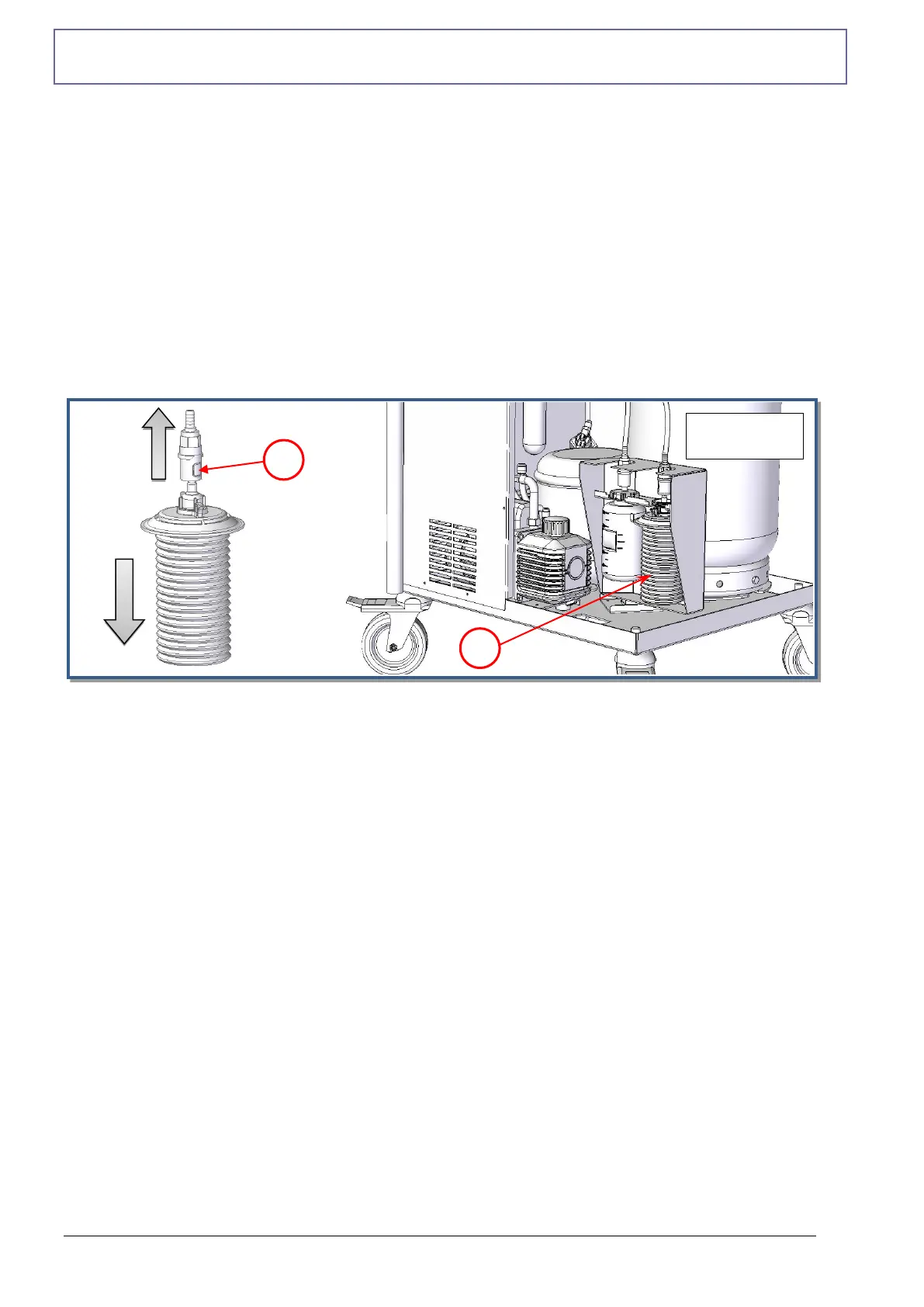

1. Press quick connection button (ref 1, Fig.31) to disconnect the oil cartridge
OIL cartridge (ref j, Fig.31);
2. Remove the used cartridge container from its lodging
3. insert the male fitting of new oil cartridge into the quick connection and replace the
cartridge in its lodging.
NOTE: Replace the cartridge taking care not to exert pressure on the scale in order not to
damage it.
