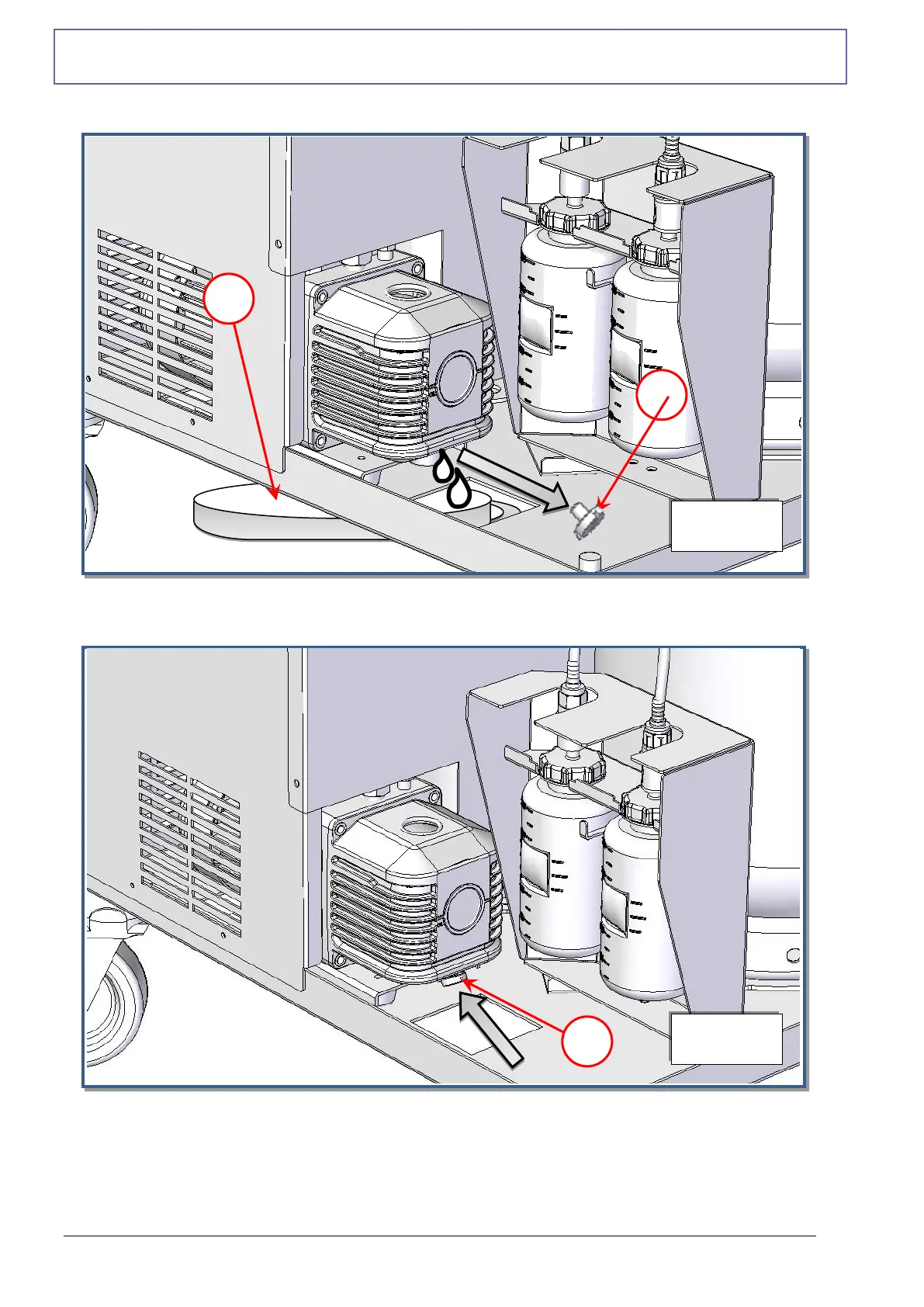

4) Unscrew the drain cap (ref 2, Fig.24).
Allow all the oil to run out into a disposal container (ref 4 Fig.24) (with height < 10 cm).
5) Close the drain cap (ref 2, Fig.25).
6) Pour in new oil through the filling hole, using a proper funnel (ref 5, Fig.26), until the
level rises to the midpoint on the indicator (ref 3, Fig.26).
FIG. 25
TOOLS:
10) Funn
el
11) Disp
osal
conta
iner
12) Alle
n
wren
FIG. 24
TOOLS:
7) Funn
el
8) Disp
osal
conta
iner
9) Alle
n
wren
ch n°
5; 8.
