Ecotechnics SUN ECK TWIN 12 - Page 33

INSTRUCTIONS MANUAL
-34-
If the UV function is installed, the quantity of UV set by the operator will be automatically
reintegrated.
When completed, the system will go on to charging with the preset quantity of refrigerant.

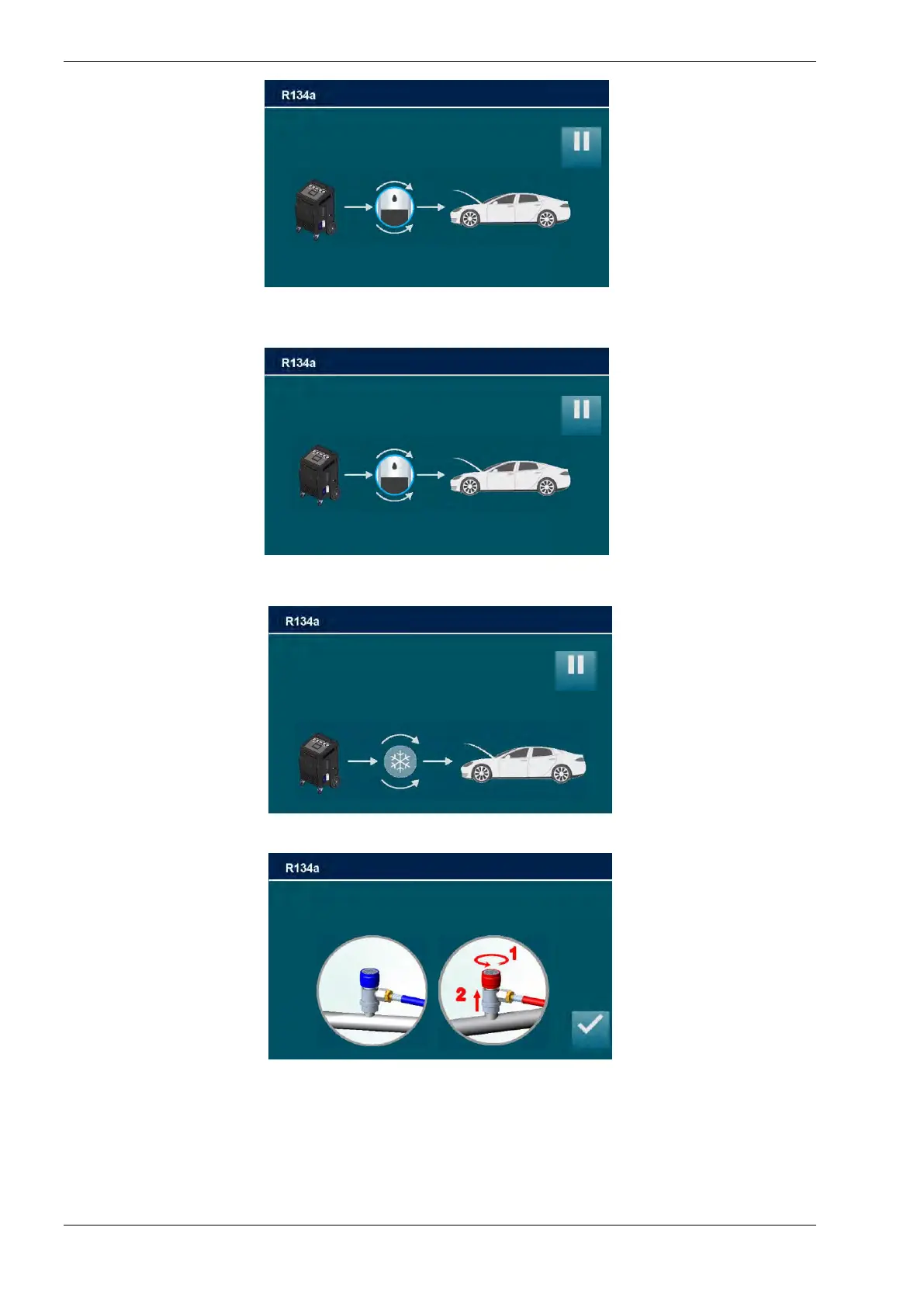

Then the following screen will be displayed.
Disconnect HP coupling. Start A/C system with LP coupling connected, press ENTER
The A/C system will recover the refrigerant into the service hoses, then the following screen will
be displayed:
DD/MM/YY XX:XX PM
UV INJECTION
0 ml/ 0%
STOP
OIL INJECTION
ENTER
DD/MM/YY XX:XX PM
Disconnect HP coupling Start A/C system with LP
coupling connected end press ENTER
Gas charged: 86g / 100 g
Tank Pressure 6.6 bar
A/C pressure 2.9 bar
Tank Temperature 25.5 °C
STOP
DD/MM/YY XX:XX PM
CHARGE
DD/MM/YY XX:XX PM
OIL INJECTION
0 ml/ 0%
STOP
OIL INJECTION
