Chapter 1 | Switch Description
System Overview
– 10 –
Gigabit SFP Slots: The switch contains four SFP transceiver slots that operate up to
1 Gbps full duplex.
Mode Button: Pressing the Mode button on the front panel changes the Diag LED
to display PoE status.
Console Port: The RJ-45 connector on the front panel labeled “Console” provides
an out-of-band serial connection to a terminal or a PC running terminal emulation
software. The port can be used for performing switch monitoring and
configuration.
System LEDs: The switch supports indicator LEDs for displaying system status.
Port LEDs: The switch supports indicator LEDs for displaying port status.

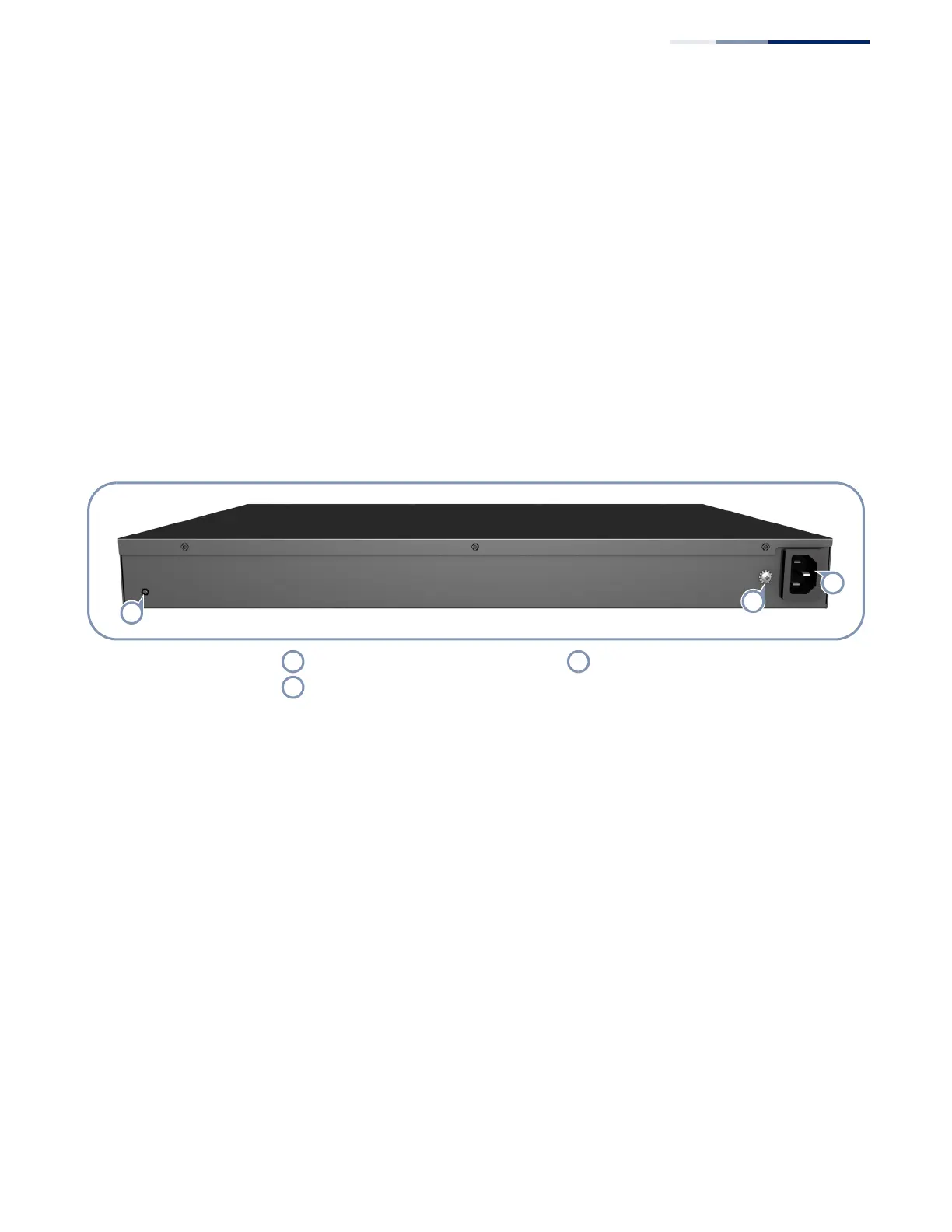

Figure 2: Rear Panel
AC Power Socket: The switch includes a standard AC power socket that connects
to a 100-240 VAC, 50-60 Hz AC power source.
Grounding Terminal: The switch supports a single-screw grounding terminal. The
grounding terminal must be connected to a ground source that provides local
earth potential.
Reset Button: The switch supports a reset button on the rear panel that causes the
switch to execute a hard reset.
1
2
3
AC Power Socket Reset Button
Grounding Point
1
3
2
