Edwards ES Series User Manual

© Edwards Limited 2014. All rights reserved. Page 7
Edwards and the Edwards logo are trademarks of Edwards Limited.
EH - ES direct mount assembly procedure
A352-02-840 Issue A
4.2 Adapter mounting to booster
Refer to Figure 2.

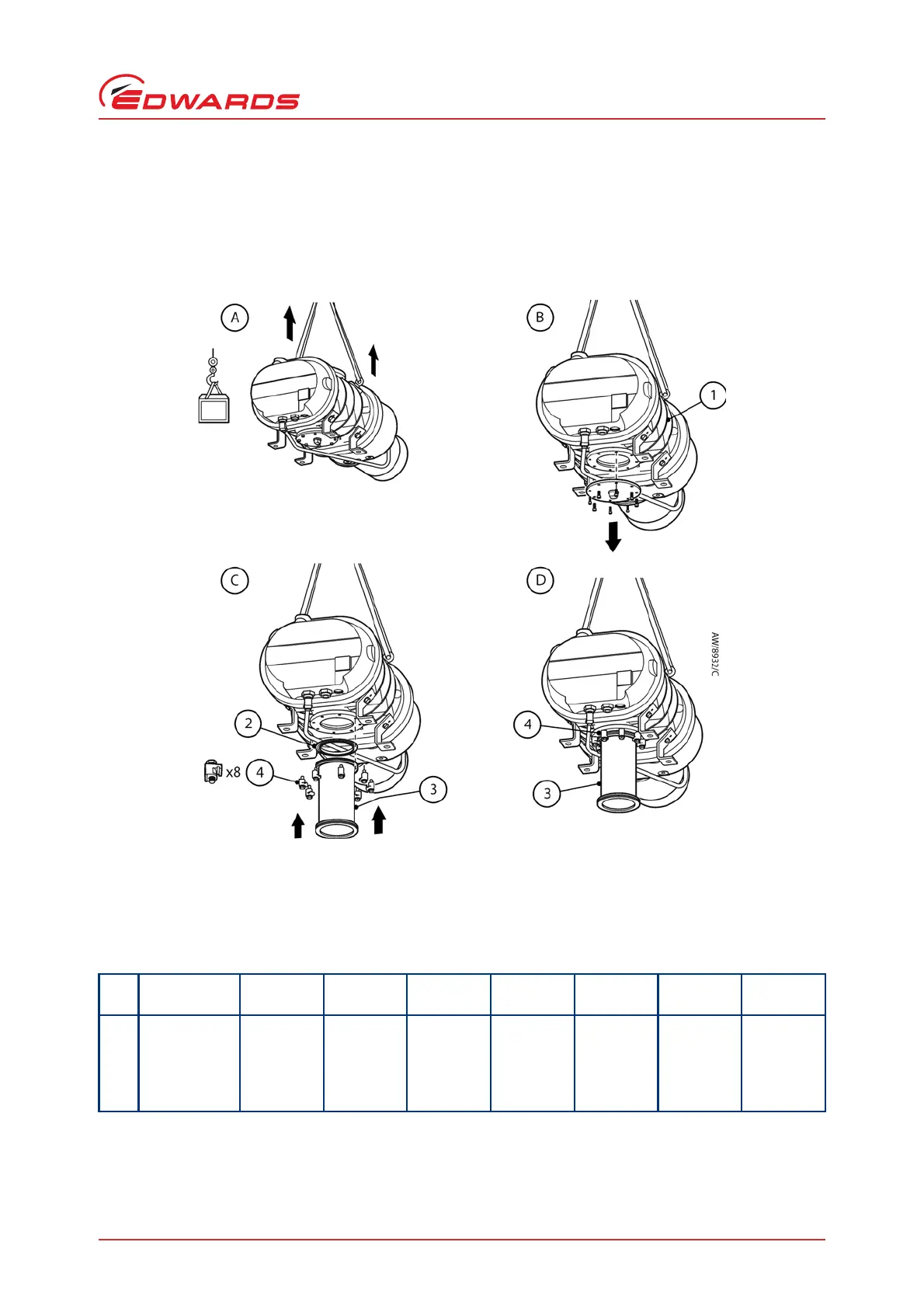

Figure 2 - Adapter mounting
Ref Description
ES100/
EH250
ES100/
EH500
ES200/
EH500
ES200/
EH1200
ES300/
EH500
ES300/
EH1200
ES630/
EH1200
1EH booster
2 O-ring B27158165 B27158170 B27158170 B27158171 B27158170 B27158171 B27158171
3 Adapter C10007087 C10007155 C10007155 C10009111 C10007155 C10009111 C10009160
4 Clamps C10007151 C10007151 C10007151 C10007151 C10007151 C10007151 C10007151
A. Lift the EH booster.
B. Remove the blanking plate.
C. Fit the O-ring and adapter to the exhaust on the EH pump.
D. Secure the adapter to the exhaust on the EH pump with the bolts supplied.
