A352-02-840 Issue A
Page 14 © Edwards Limited 2014. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
EH - ES frame mount assembly procedure
5.4 Main frame assembly

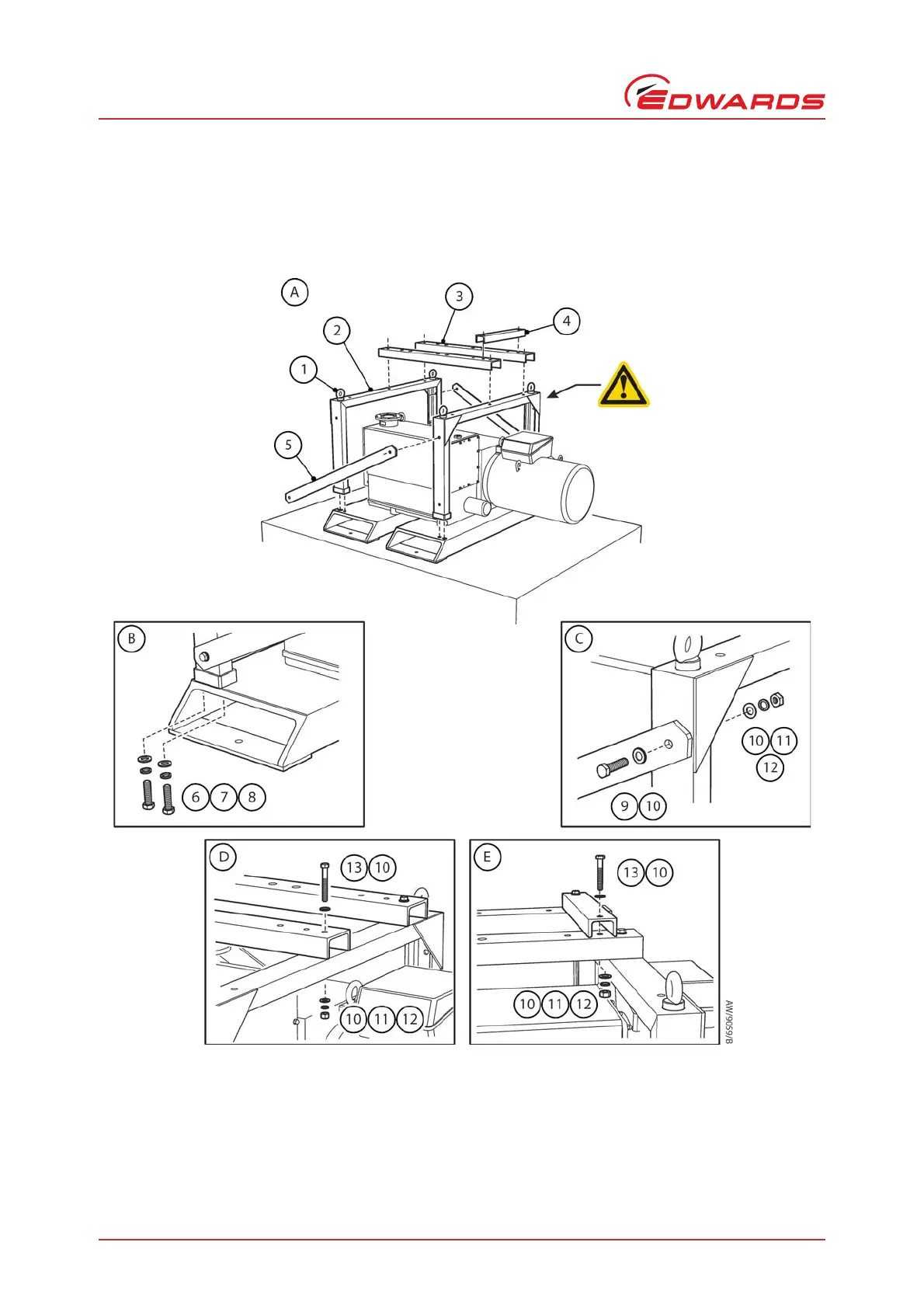

Refer to Figure 7.
Figure 7 - Base runner installation
Corner plate to be facing
outwards
A. Main frame exploded diagram
B. Connect end frames to base runners
C. Connect cross braces to main frame
D. Connect upper support channels to main frame
E. Connect pump brace to upper support channels
