Edwards ES Series User Manual

© Edwards Limited 2014. All rights reserved. Page 11
Edwards and the Edwards logo are trademarks of Edwards Limited.
EH - ES frame mount assembly procedure
A352-02-840 Issue A
5.1 Base runner preparation
Refer to Figure 4.
 Place the base runners on the work bench.
 Set the hole centres at 376 mm.

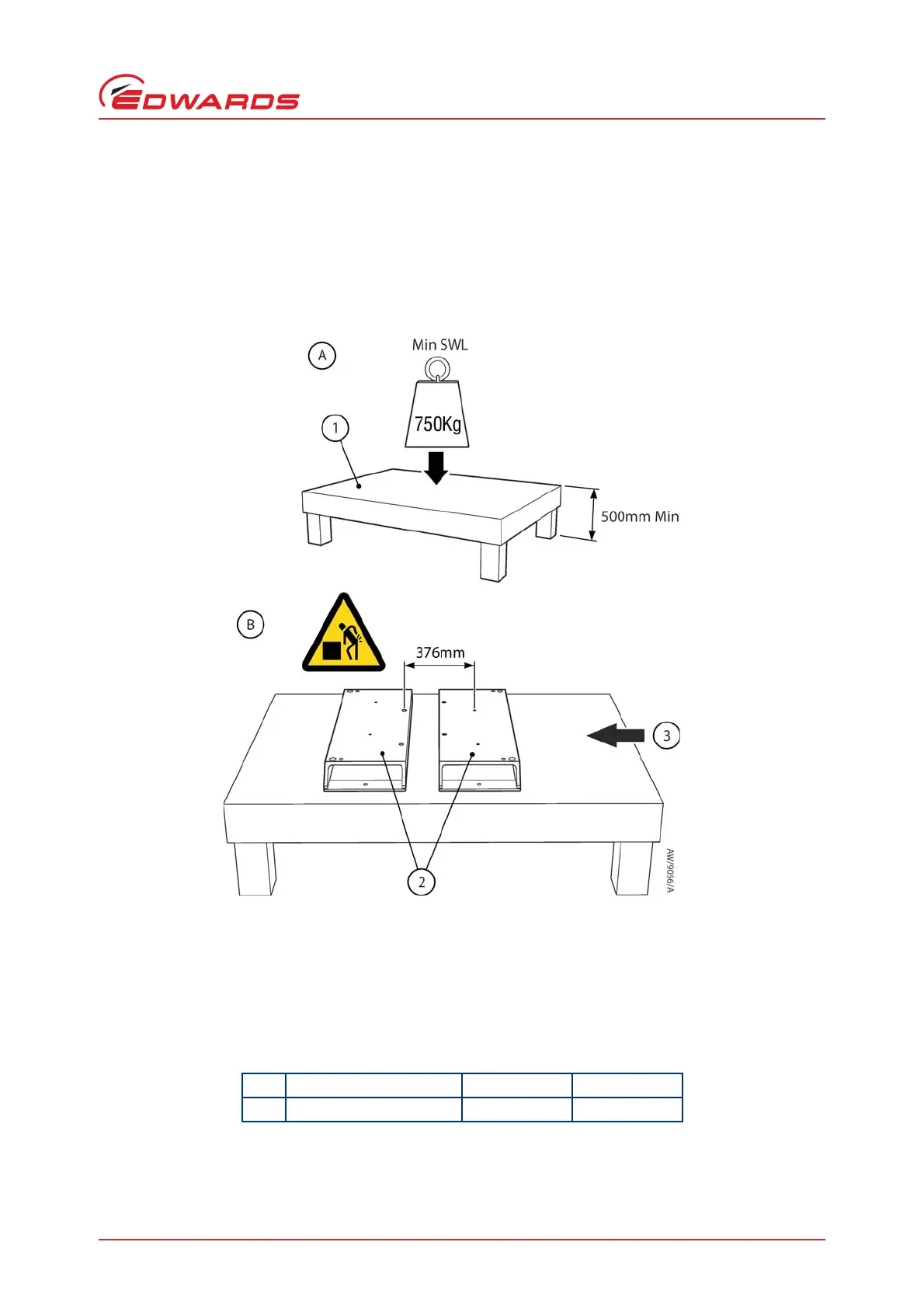

Figure 4 - Base runner preparation
Ref Description ES300 ES630
2 Base runner A22440102 A22440122
A. Work bench requirements.
B. Place base runners on work bench and set hole centres.
1. Work bench
2. Base runners (2 off)
3. Motor side of ES300/630 pump
