EH - ES frame mount assembly procedure
5.2 Grub screw alignment and installation
Refer to Figure 5.
Screw the grub screws into the feet of the pump.

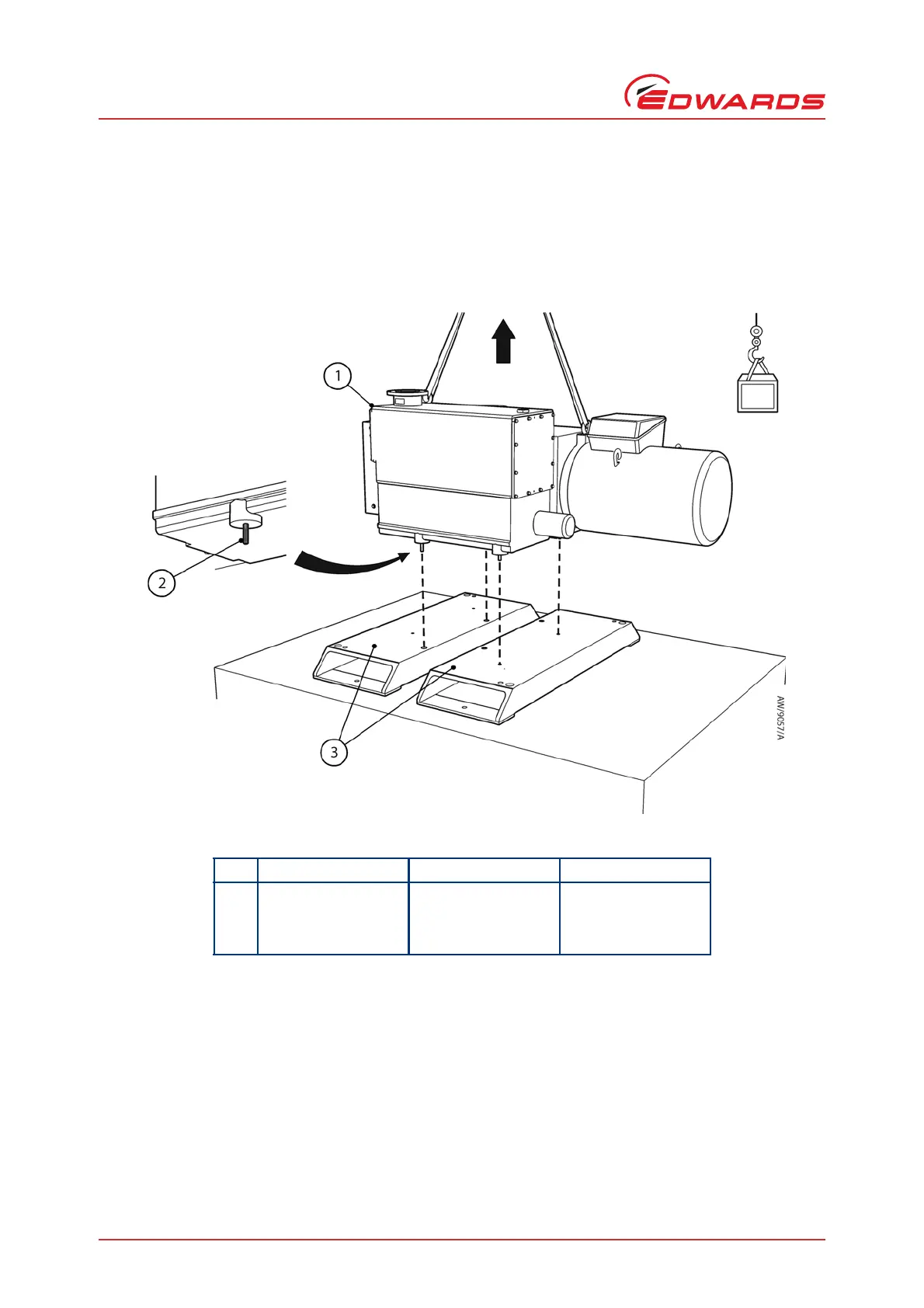

Figure 5 - Grub screw alignment and installation
Ref Description ES300 ES630
1 ES pump weight 180 kg 506 kg
2 Grub screws (4 off) 218430160 218430160
3 Base runners (2 off) A22440122 A22440102
