EH - ES frame mount assembly procedure
A352-02-840 Issue A
5.3 Base runner alignment
Refer to Figure 6.
 Line up the grub screws with the holes in the base runners and lower the pump.

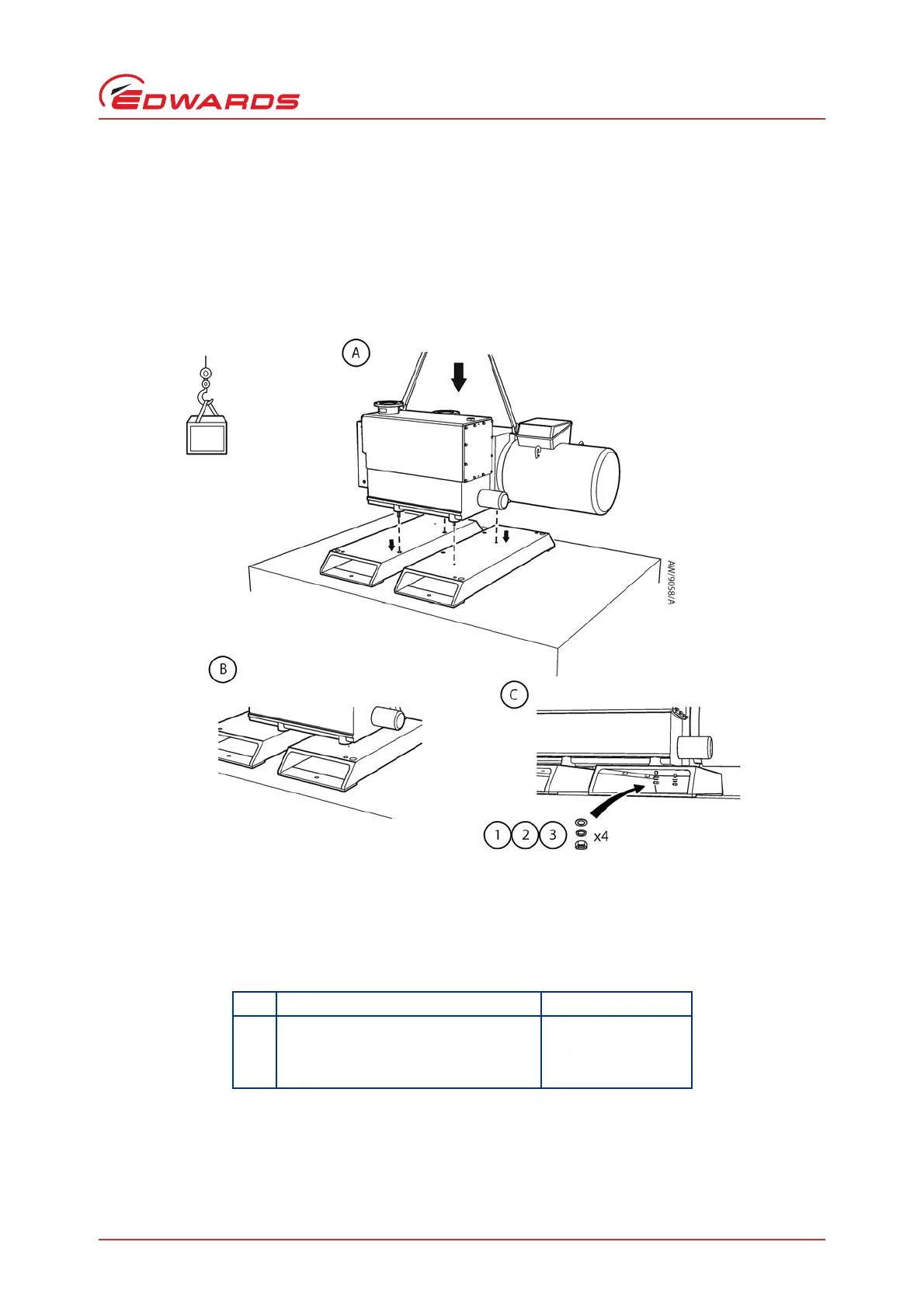

Figure 6 - Base runner alignment
Ref Description Part number
1 M10 nut (4 off) 2189609011
2 M10 spring washer (4 off) 218983511
3 M10 washer (4 off) 218981311
A. Lowering ES pump onto base runners
B. ES pump located on base runners
C. Secure ES pump to base runners
