A352-02-840 Issue A
Page 6 © Edwards Limited 2014. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
EH - ES direct mount assembly procedure
4 EH - ES direct mount assembly
procedure
See Table 9 for required tools for performing this procedure.
4.1 Base runner mounting to pump
Refer to Figure 1.

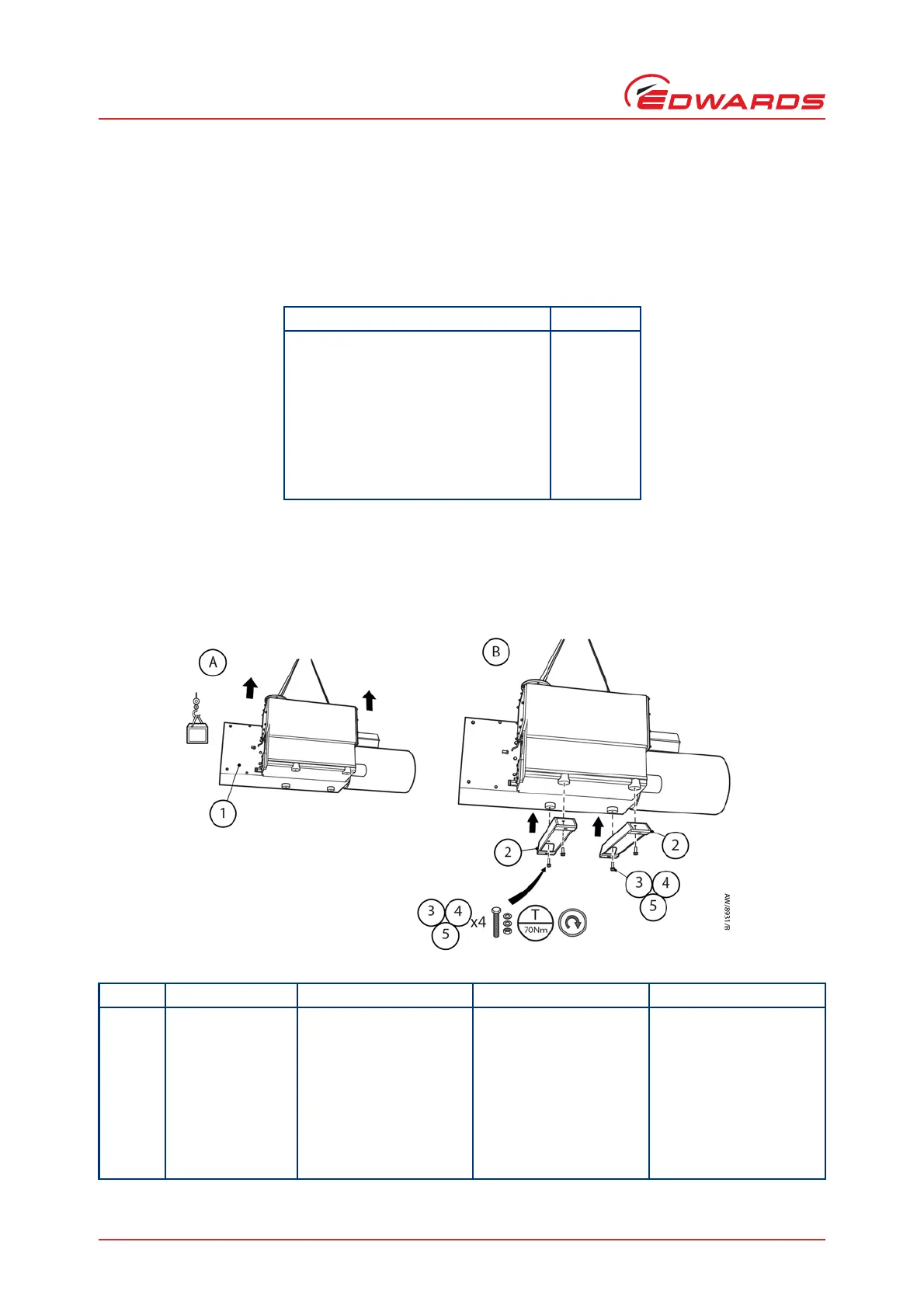

Figure 1 - Base runner mounting
Table 9 - Required tools
Tool description Quantity
½ inch torque wrench 2
13 mm socket (for M8 in feet) 1
30 mm socket (for M20) 2
24 mm socket (for M16) 1
19 mm socket (for M12) 2
17 mm socket (for M10) 2
13 mm spanner (for M8 on claws) 1
Ref Description ES100 ES200 / ES300 ES630
1 ES pump weight 88 kg 144/180 kg 506 kg
2 Base runner A20501052 A20501052 A20501055
3 Bolt M8 x 25 - 218181412 (x2)
M10 x 25 - 218181452 (x2)
M10 x 25 - 218181452 M10 x 25 - 218181452
4 Washer 218981310 (x2)
218981311 (x2)
218981311 218981311
5 S.coil washer 218983510 (x2)
218983511 (x2)
218983511 218983511
A. Lift the pump safely and support to allow
underside access.
B. Bolt the base runners to the ES pump feet
using 4 bolts. Tighten the bolts to 70 Nm.
