EH - ES frame mount assembly procedure

A352-02-840 Issue A

5.6 Bellows installation

Refer to Figure 9.

 Remove the protective cover and clamp the bellows to the outlet on the EH pump.

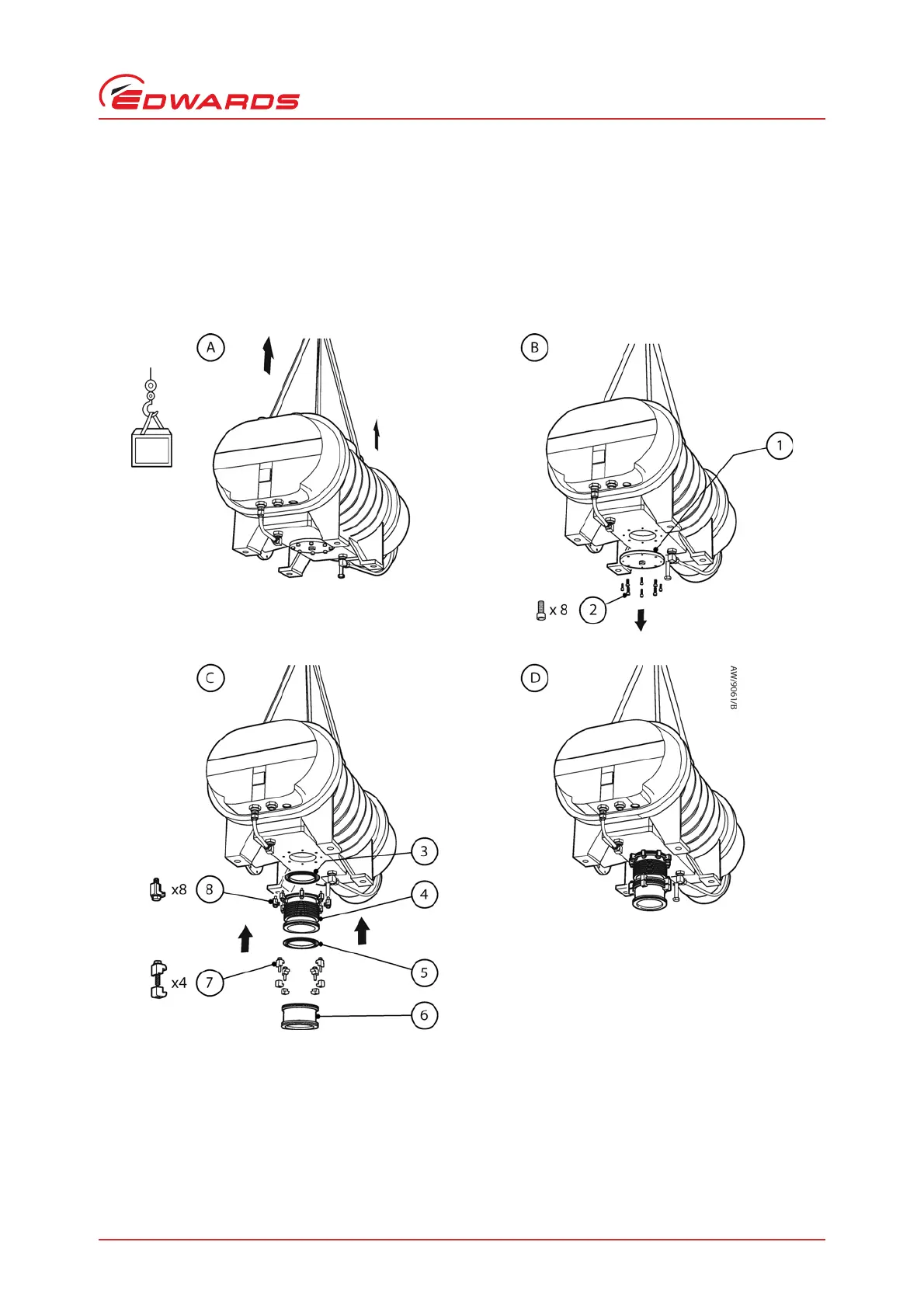

Figure 9 - Bellows installation

A. Raise EH booster

B. Remove blanking flange

C. Fit bellows and spacer

D. Bellows and spacer assembled
