© Edwards Limited 2014. All rights reserved. Page 19
Edwards and the Edwards logo are trademarks of Edwards Limited.
EH - ES frame mount assembly procedure
A352-02-840 Issue A
5.7 Booster installation
Refer to Figure 10 and Figure 11.
Lower the EH booster to the frame and bolt in position.

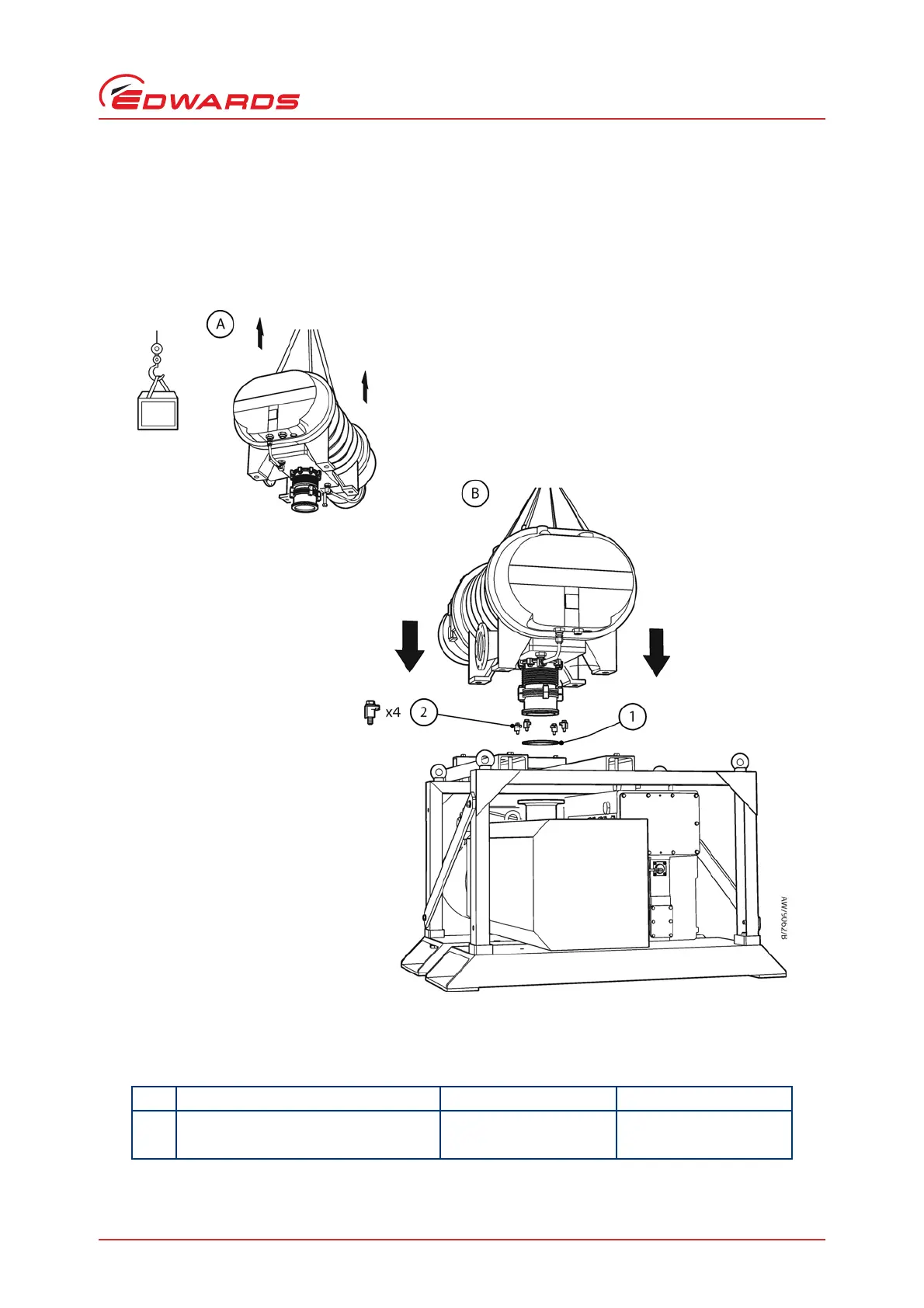

Figure 10 - Connect EH booster to ES pump
Ref Description ES300 ES630
1 Trapped O-ring B27158170 B27158171
2 Clamp (8 off) C10007156 C10007151
A. Raise EH booster
B. Lower EH booster onto ES pump
