Edwards nES Series User Manual

4. Installaon

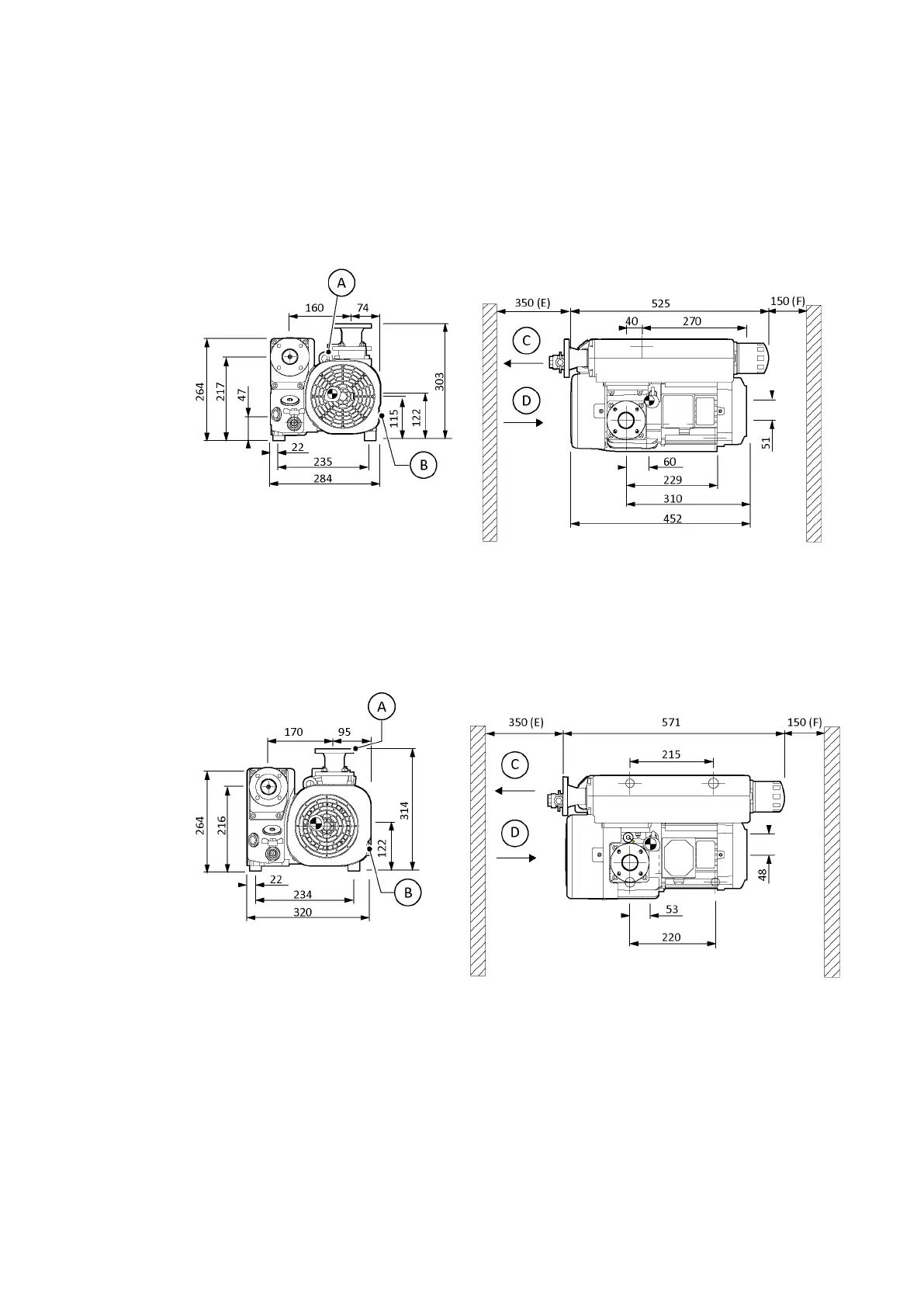

4.1 Dimension drawings
Figure 11 nES40 Dimensions
A. Liing lug B. Gas ballast
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
A. Liing lug B. Gas ballast
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
Figure 12 nES65 Dimensions
A. Inlet port B. Gas ballast
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
A. Inlet port B. Gas ballast
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
Page 22 - 07/2020
A35104880_B - Installaon
