Edwards nES Series User Manual

▪ For pumps with a single-phase motor, the pump should be connected to a
standard wall socket, a 16 A rated protecon is necessary (fuse or breaker). The
motor has a "Klixon" overload protecon element which looks like a red push
buon that must be manually reset aer an overload trip. The delivery includes a
C13 plug but no power cable. If the C13 plug is wired to a purpose-made power
cable, this must be done by an electrically cered sta. Check acceptable voltage
and frequency on the pump nameplate before use.
▪ Addional safety devices are available as opons including an oil pump
temperature switch.

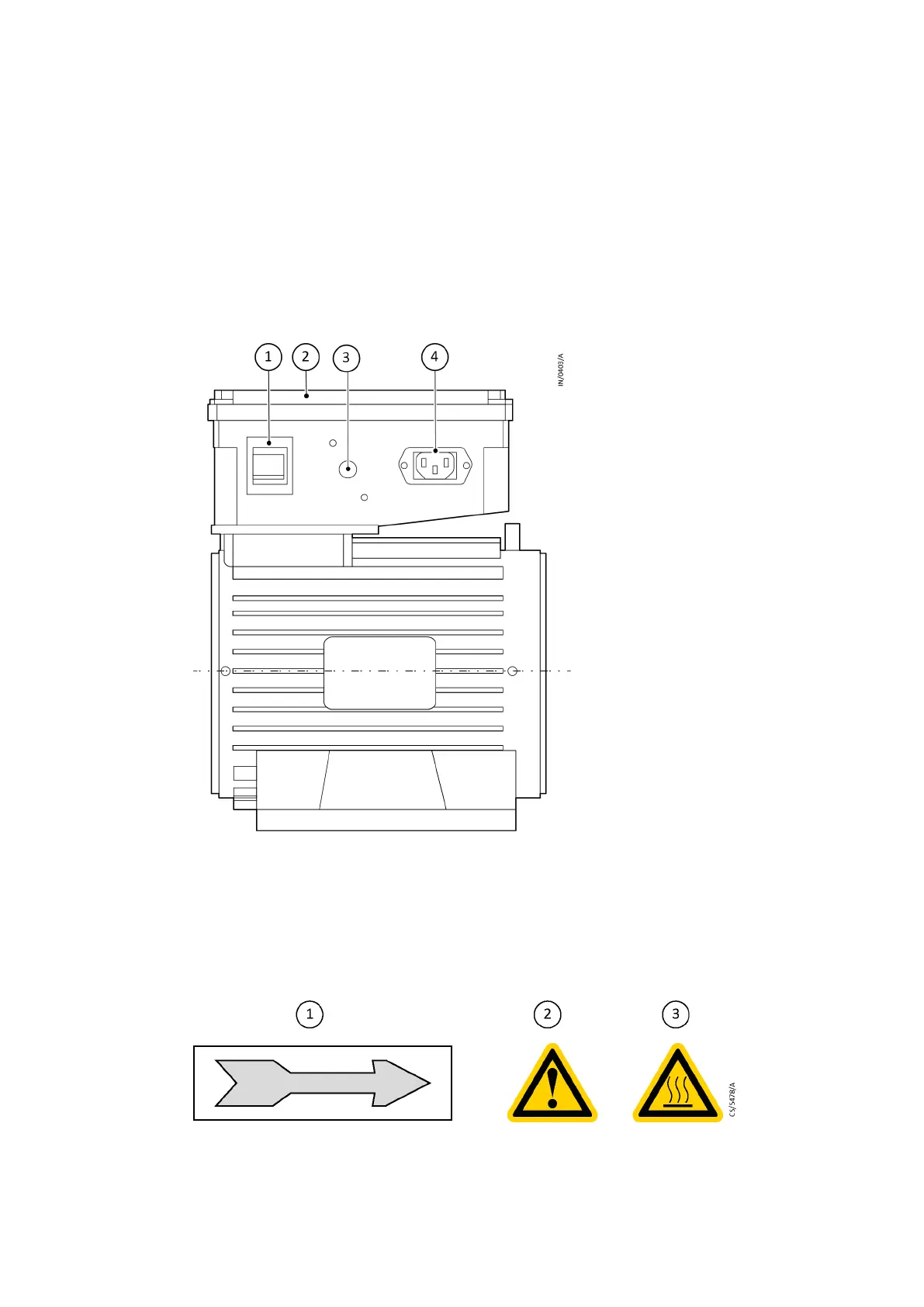

Figure 21 Electrical connecons
1. Switch 0/1 2. Juncon box
3. Thermal protecon Klixon 4. Socket CE1320 C14
1. Switch 0/1 2. Juncon box
3. Thermal protecon Klixon 4. Socket CE1320 C14
4.4 Pictographs
Figure 22 Pictographs
1. Rotaon
direcon of the fan
2. Shock hazard
3. Hot surface
1. Rotaon
direcon of the fan
2. Shock hazard
3. Hot surface
07/2020 - Page 31
A35104880_B - Installaon
