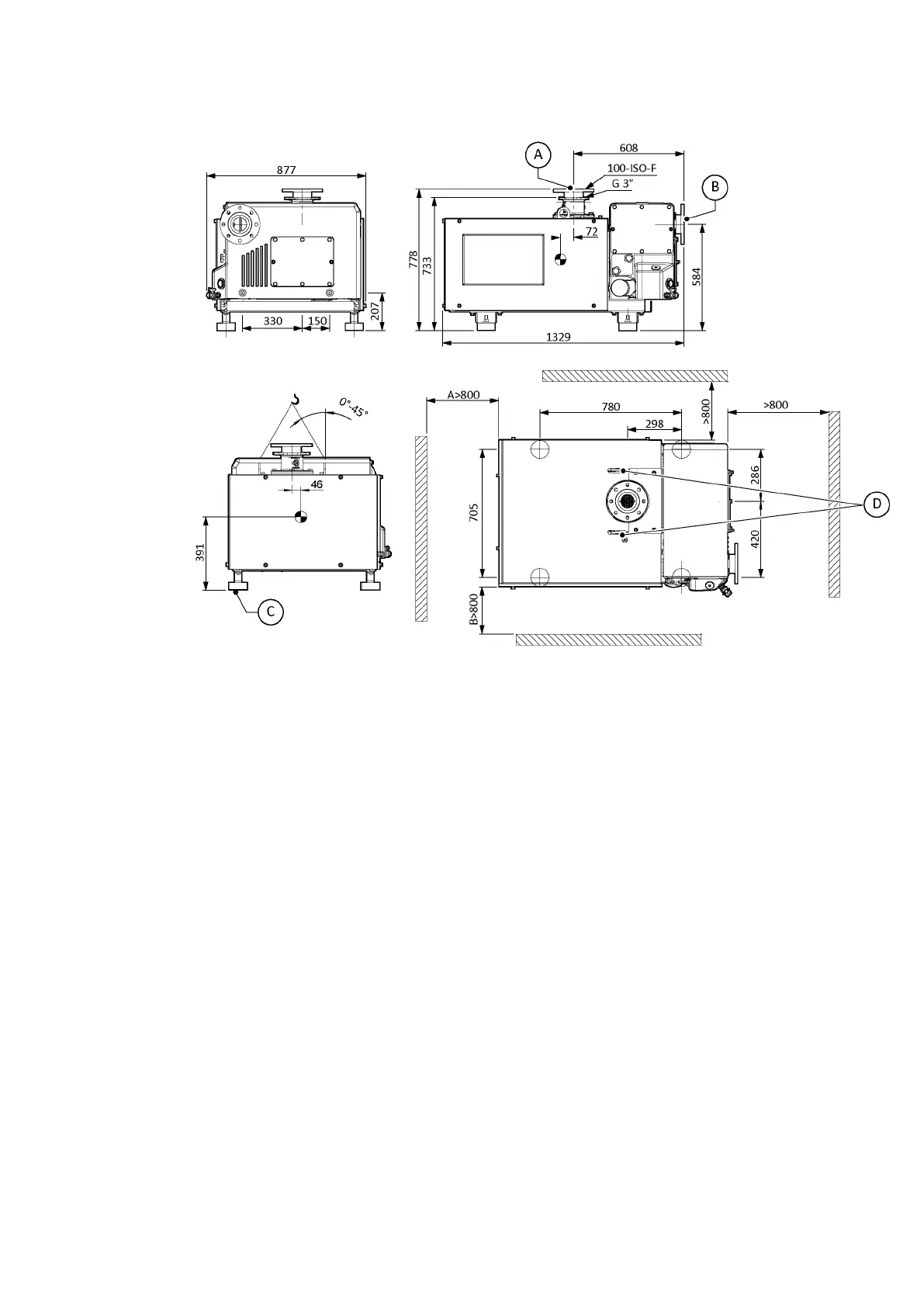

Figure 17 nES470 Dimensions
A. Inlet port B. Exhaust port
C. Mounng (4) M16 x 14 D. Liing lug
A. Inlet port B. Exhaust port
C. Mounng (4) M16 x 14 D. Liing lug
07/2020 - Page 25
A35104880_B - Installaon
