Edwards nES Series User Manual

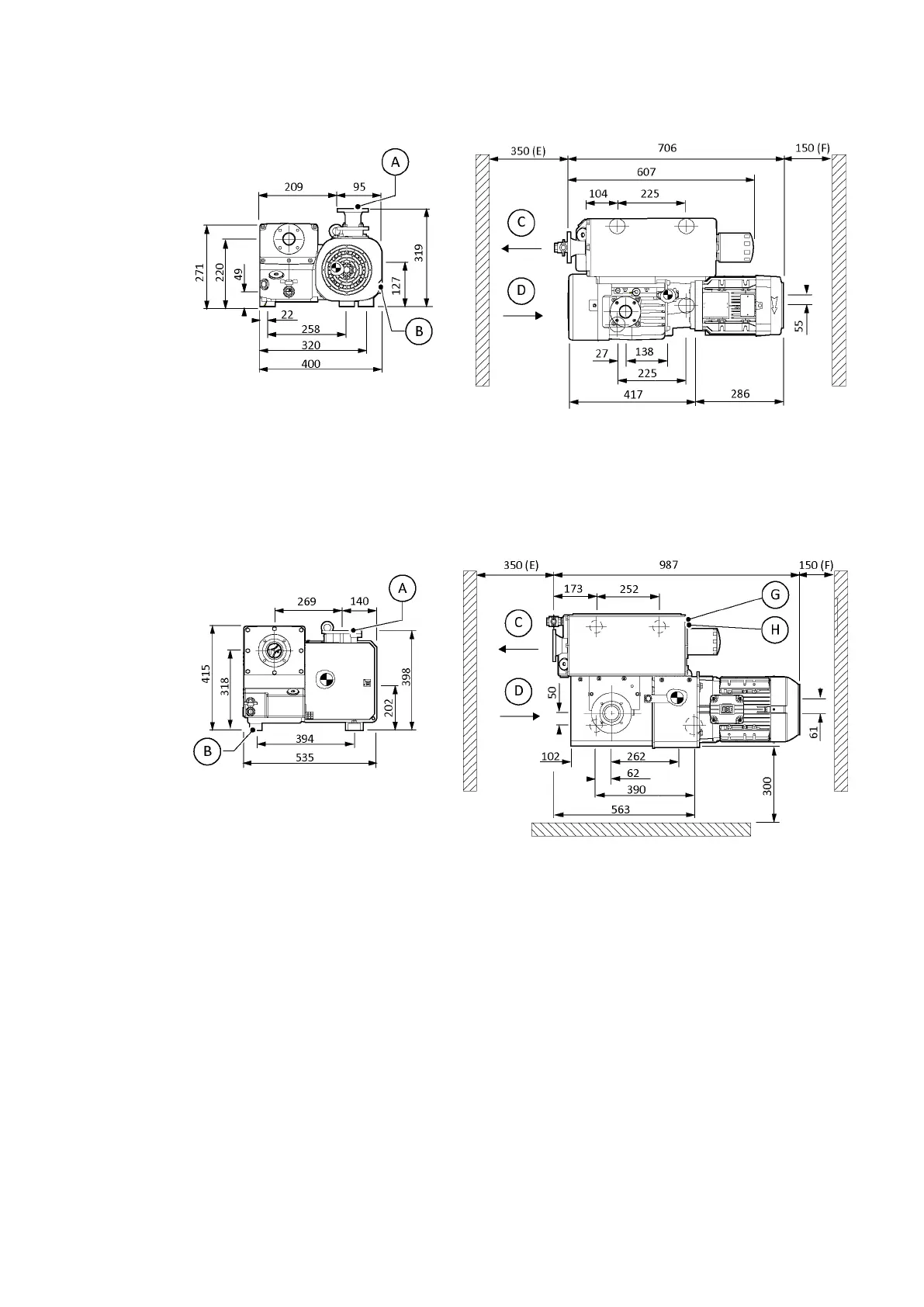

Figure 13 nES100 Dimensions
A. Inlet port B. Gas ballast
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
A. Inlet port B. Gas ballast
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
Figure 14 nES200 Dimensions
A. Inlet port B. Mounng (4) M10 x 10
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
G. Oil level switch
H. Exhaust lter switch
A. Inlet port B. Mounng (4) M10 x 10
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
G. Oil level switch
H. Exhaust lter switch
07/2020 - Page 23
A35104880_B - Installaon
