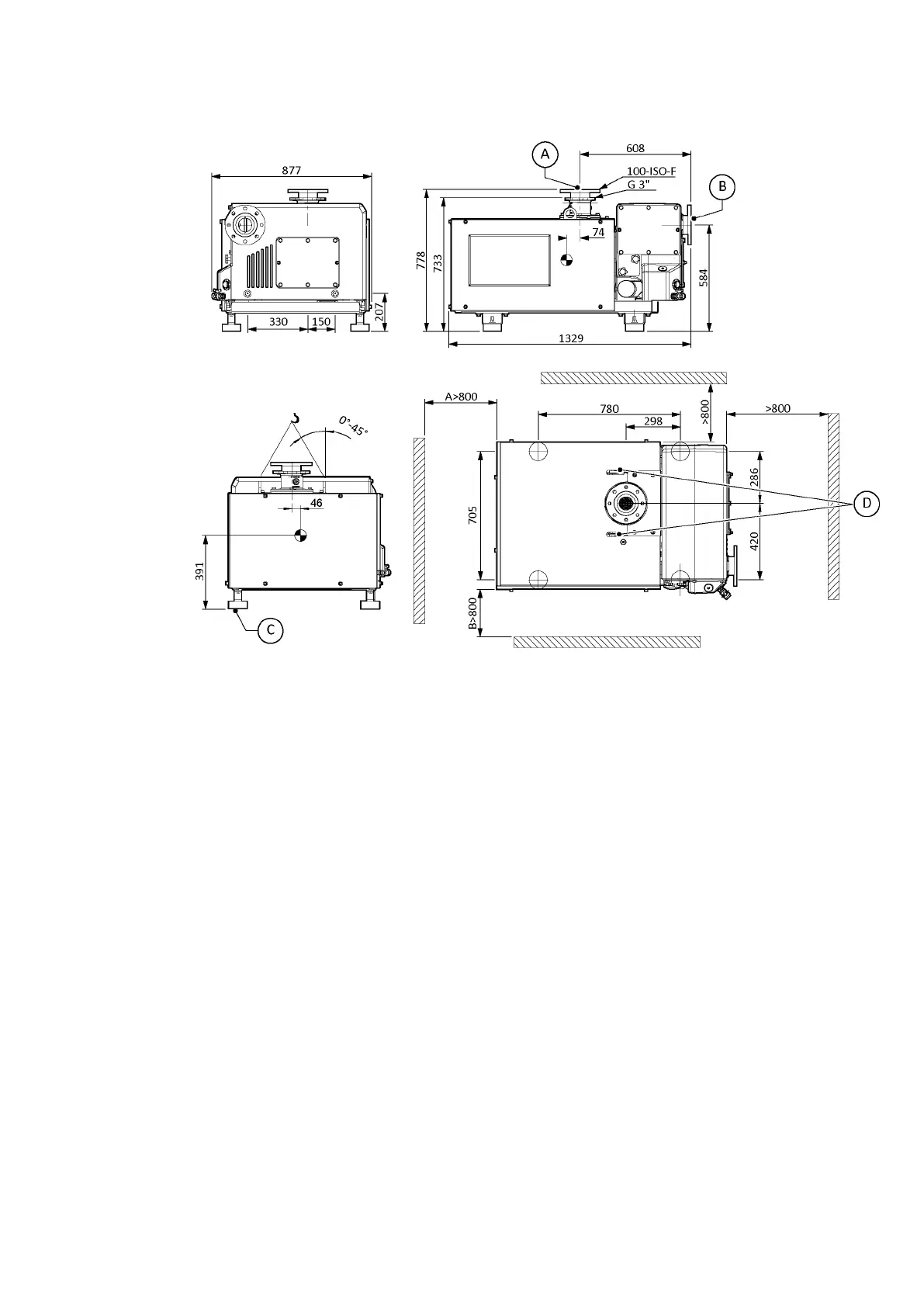

Figure 18 nES570 Dimensions
A. Inlet port B. Exhaust port
C. Mounng (4) M16 x 14 D. Liing lugs
A. Inlet port B. Exhaust port
C. Mounng (4) M16 x 14 D. Liing lugs
Page 26 - 07/2020
A35104880_B - Installaon
