Edwards nES Series User Manual

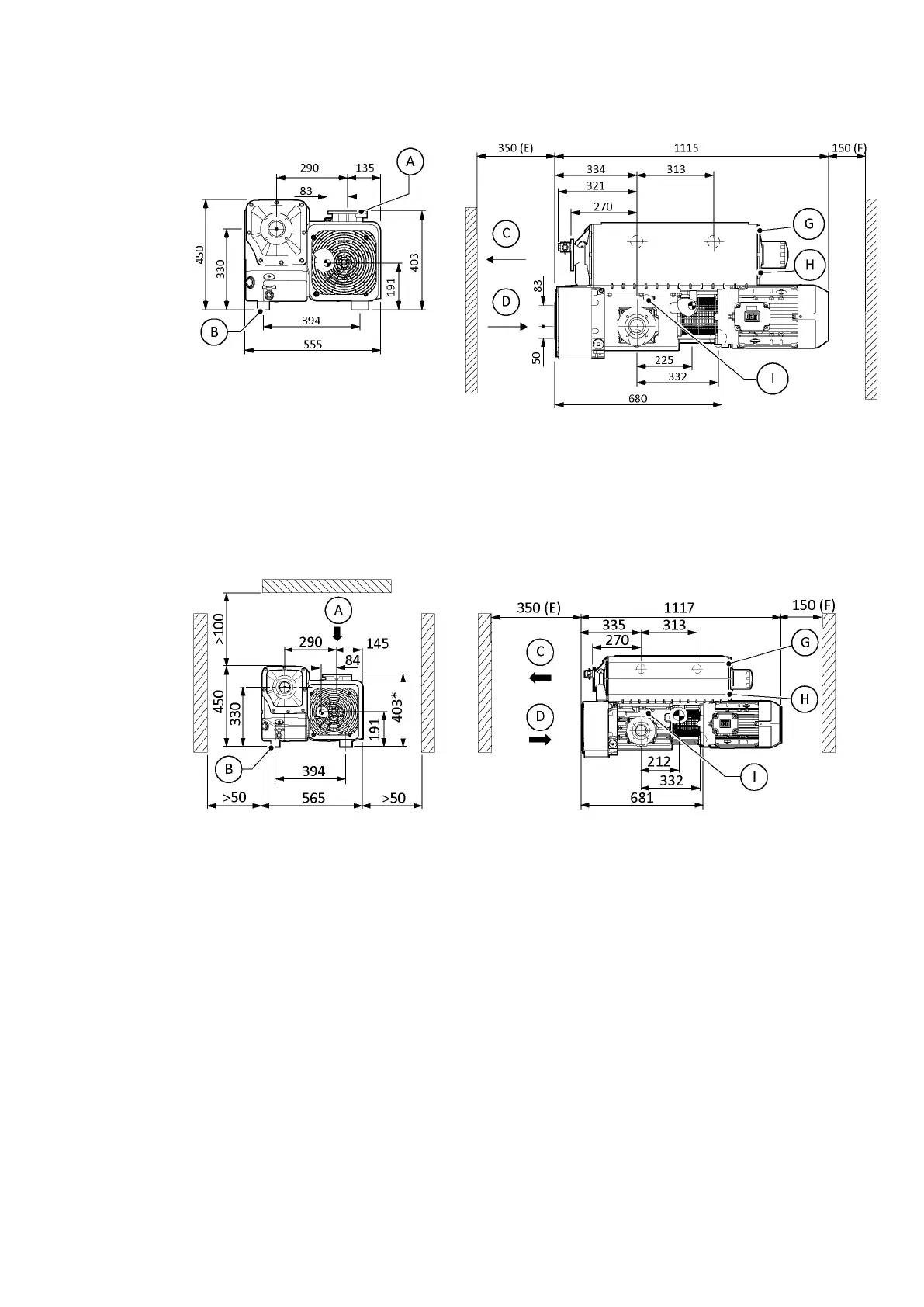

Figure 15 nES300 Dimensions
A. Inlet port B. Mounng (4) M10 x 10
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
G. Oil level switch
H. Exhaust lter switch I. Thermal switch
A. Inlet port B. Mounng (4) M10 x 10
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
G. Oil level switch
H. Exhaust lter switch I. Thermal switch
Figure 16 nES300S Dimensions
A. Inlet port B. Mounng (4) M10 x 10
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
G. Oil level switch
H. Exhaust lter switch I. Thermal switch
A. Inlet port B. Mounng (4) M10 x 10
C. Exhaust port D. Cooling air
E. Space for exhaust lter exchange and
cooling
F. Space for motor venlaon
G. Oil level switch
H. Exhaust lter switch I. Thermal switch
Page 24 - 07/2020
A35104880_B - Installaon
