Edwards STP-301 Series - Figure 13.1 External Appearance of the STP Pump [Without Anti-Corrosion Treatment]

STP-301/451 Series Instruction Manual
13-2
Dimensions List (STP pump and flanges)
Model STP-301 Series STP-451 Series
Flange ICF
*2
152 VG
*1
100 ISO100 ICF
*2
203 VG
*1
150 ISO160
A 230 230 230 200 200 200
B 152 185 130 203 235 180
C 171 171 171 141 141 141
D 21 12 12 22 12 12

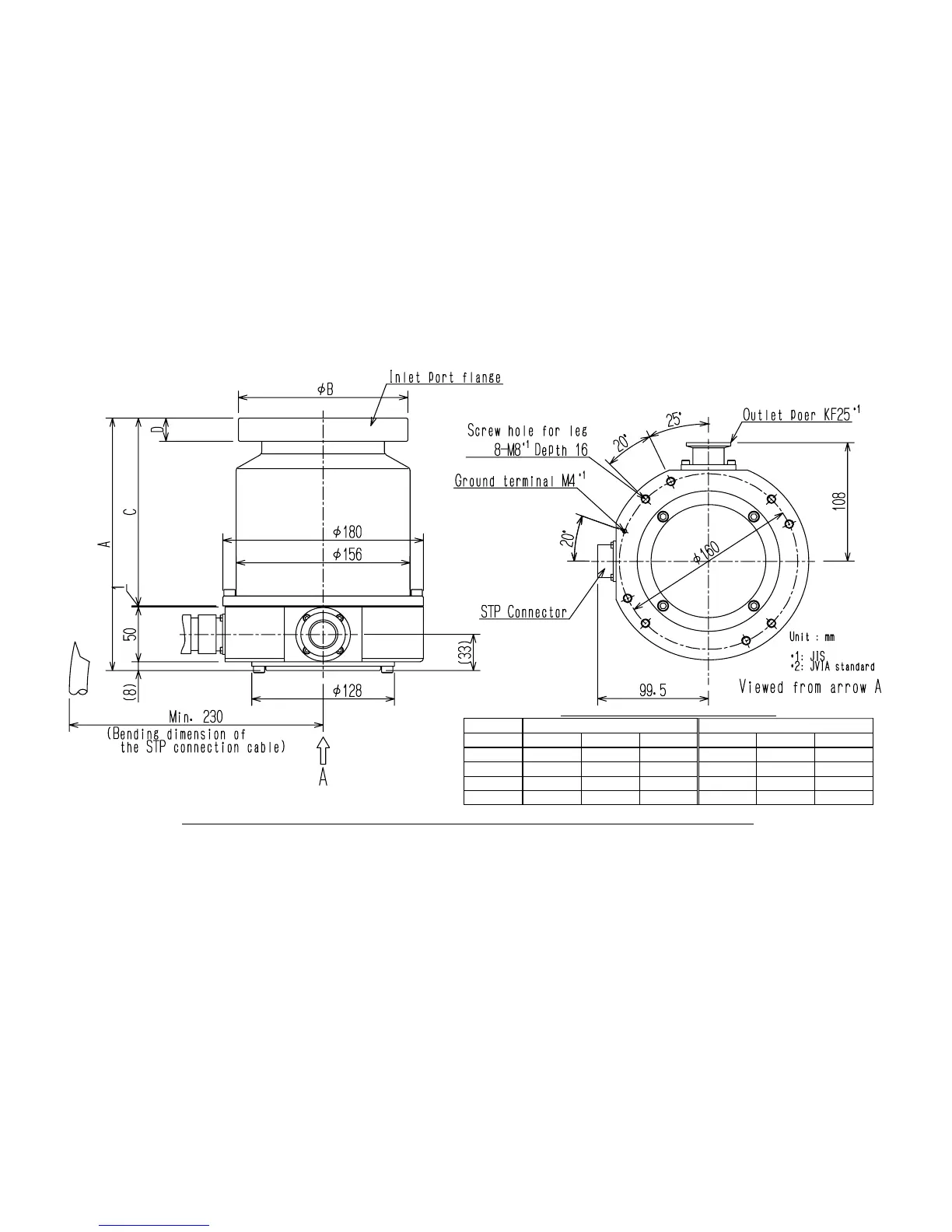

Figure 13.1 External Appearance of the STP Pump [without Anti-Corrosion Treatment] (Example: STP-301)
