Edwards STP-301 Series User Manual

STP-301/451 Series Instruction Manual
6-11
Installation
STP Control Unit Side Power Side (Primary)
φ8.1
25
37
55
18
3pin (Socket)
Crimp-Type Terminal Lug(M4 )
*1
1.5mm^2 X 3 cores
(Blown, Blue, Yellow/Grenn)
PE( )
L
N
a) without power plug
φ8.1
25
37
55
N
L
φ38
N
L
18
PE( )
L
N
Plug type: NEMA 6-15
(250V,15A)
(for 200V spec.)
GND( )
Plug type: NEMA 5-15
(125V,15A)
(for 100V spec.)
GND( )
50
50
φ38
STP Control Unit Side Power Side (Primary)
3pin (Socket)
1.5mm^2 X 3 cores
(Blown, Blue, Yellow/Grenn)
b) with power plug
*2

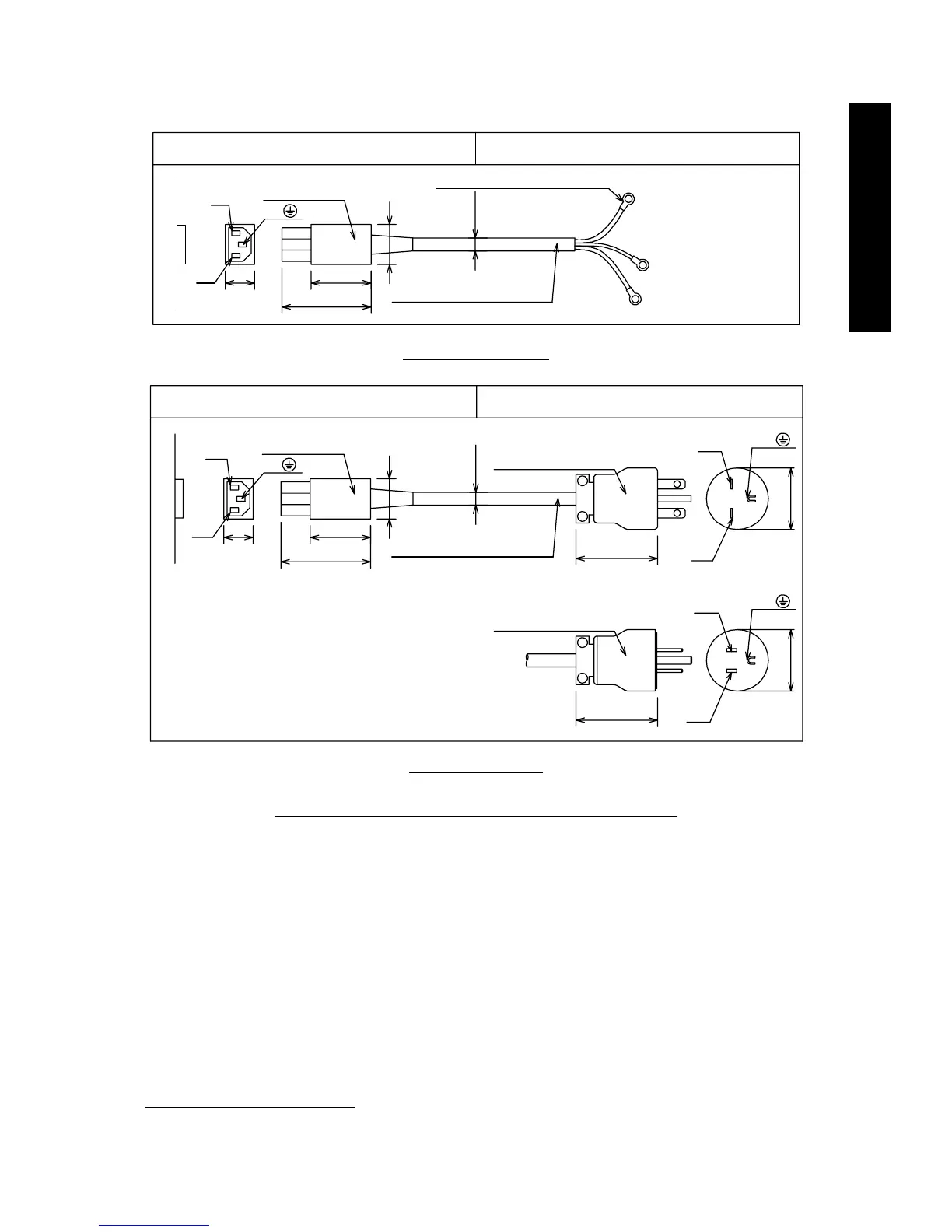

Figure 6.9 External Dimensions of STP Connection Cable
*1
: JIS
*2
: Recognized model to UL3101-1 standard has power cable with the plug.
