STP-301/451 Series Instruction Manual
6-10
Installation
6.4 Cable Connection
6.4.1 Name and Dimensions of Each Cable
STP Control unit Side STP Pump Side
Ground Terminal( )
Crimp-Type Terminal Lug(M4 )
*1
Yellow / Green Wire
L≦20m: 4mm^2
L＞20m: 10mm^2
φ4.3(L≦20m)
φ6.5(L＞20m)
Ground Terminal( )
Crimp-Type Terminal Lug(M4 )
*1
Unit:mm

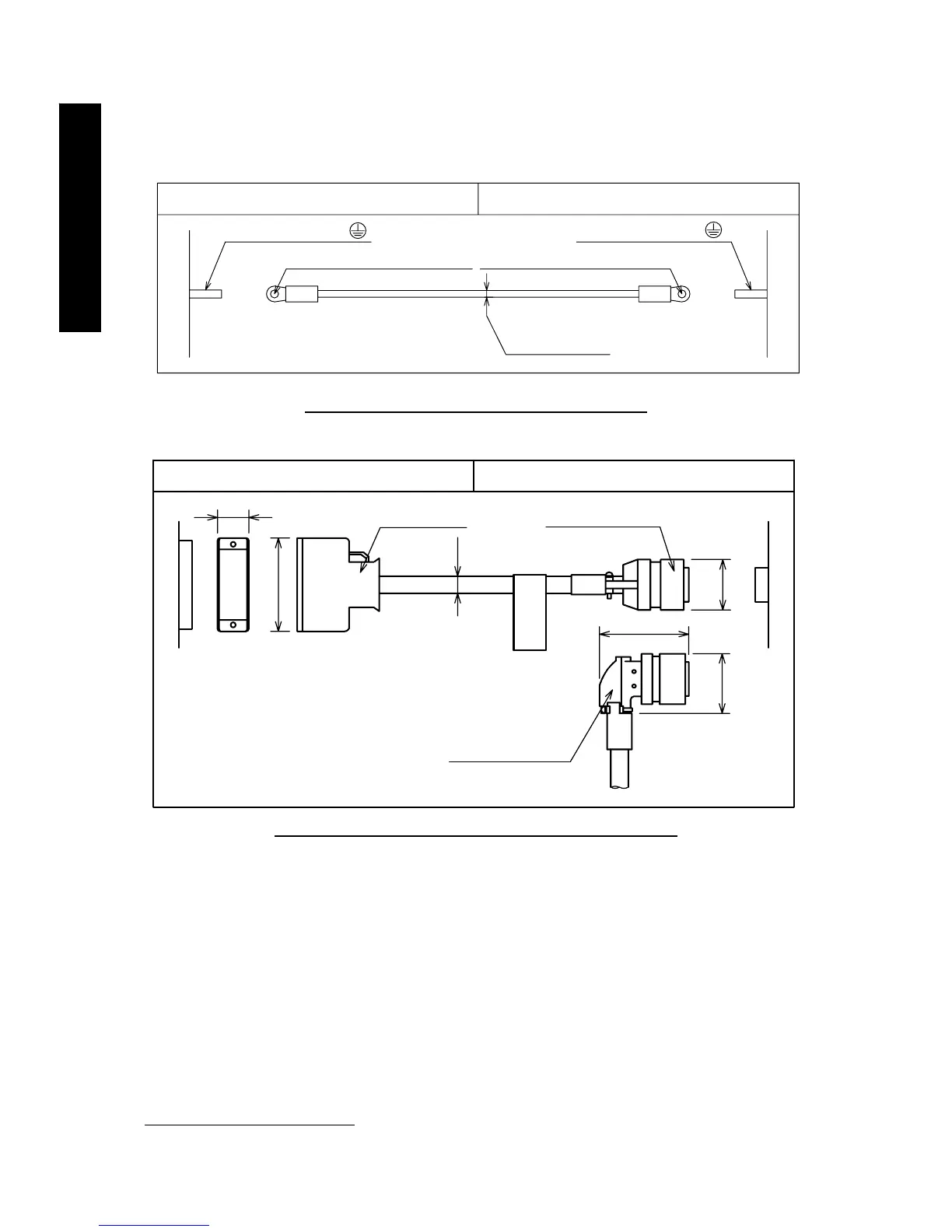

Figure 6.7 External Dimensions of Ground Cable
76.5
24.5
STP-301/451
Series
40
69.9
44.7
φ16
45pin (Pin)
41pin (Spcket)
Unit:mm
STP Control Unit Side STP Pump Side
L-type Connector
Figure 6.8 External Dimensions of STP Connection Cable
*1
: JIS
