STP-iS2207 Series Turbomolecular Pump
MT-89E-001-C
Page 26
INSTALLATION
3
When installing the STP pump to the vacuum equipment in upside-down position, the STP-iS2207
series can be loft with the eyebolts (M8) attached to the screw holes for securing the base. (see
Figure 15)
A crane and eyebolts due to lifting operations should withstand the load of five times or more the
weight of the STP pump, and rope should be seven time or more. Use an eyebolt which confirms to
ISO03266. When lifting the pump, use 2 or more ropes.

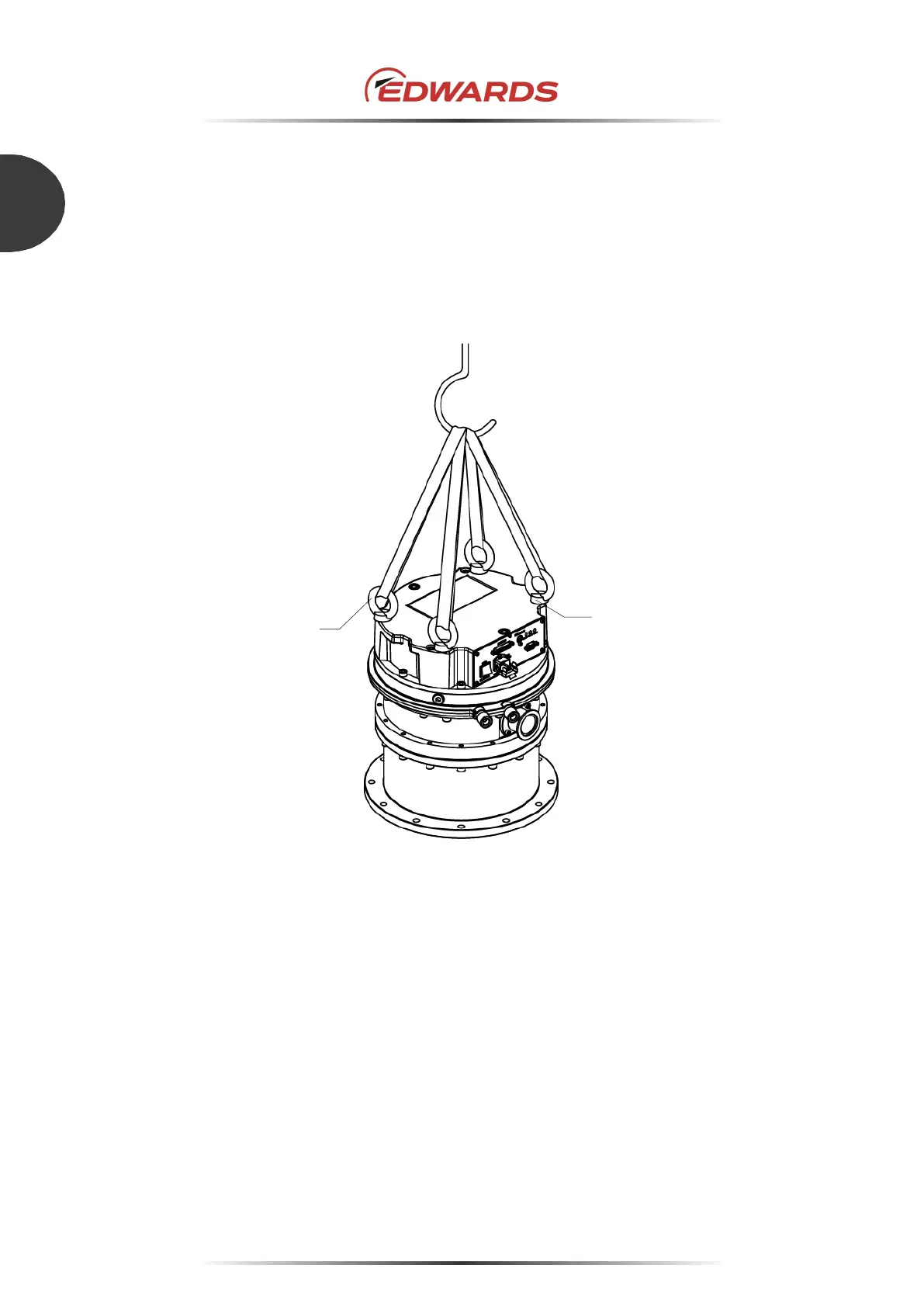

Figure 15 - STP pump with eyebolts
Eyebolt
Screw holes for
the base
