Edwards STP-iS2207C

STP-iS2207 Series Turbomolecular Pump
MT-89E-001-C
Page 59
4
OPERATION

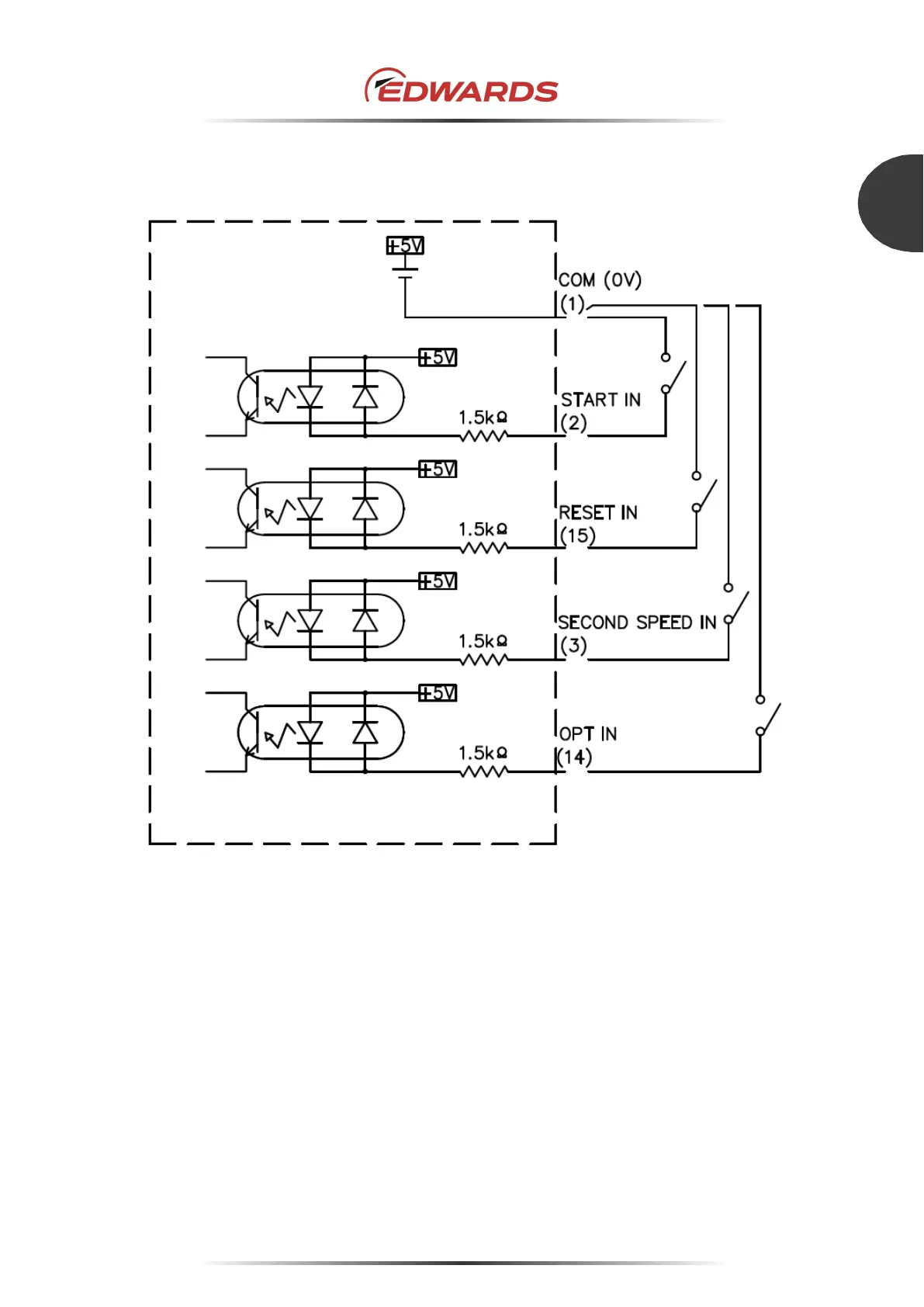

Figure 32 - X2 REMOTE input signal pins (contact input)
Note: 1 pin (0 V) is isolated from the frame ground.
Note: The input current of remote input signal is approx. 2.5 mA. Make sure the minimum applicable
load of the relay contact when the remote operation with the relay.
