STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 23
INSTALLATION
3
3.2 Unpacking and installation
Check outer package for damage and that the delivery note corresponds to the purchase order.
Note: It is recommended to keep the packaging materials, such as the corrugated fiberboard
container and cushioning material for possible reuse. If the STP pump is damaged, return it
in its original package and contact Edwards or their distributor.
WARNING
The STP pumps are heavy products. Observe national laws/regulations, safety
standards and manufacturers instructions when lifting the STP pump.
Lifting devices must be used when lifting or moving the STP pump.
The STP pumps are heavy products (Refer to Section 2, "TECHNICAL DATA" for the mass of the
STP pump). Use a crane or other appropriate means sufficient enough to withstand the load when
lifting the STP pump of 18 kg or more.
Lift the STP pump with an eyebolt or a similar tool that uses the fitting hole attached to the inlet port
flange. When lifting the pump, use 2 or more ropes. (see Figure 10)
A crane and eyebolts due to lifting operations should withstand the load of five times or more the
weight of the STP pump, and rope should be seven time or more. Use an eyebolt which confirms to
ISO03266.
Always lift the STP pump in stable places free of excessive shock or vibration to prevent it from
shaking or dropping.
Care should be taken not to scratch the flange of the STP pump. Before installing the STP pump,
check that there are no scratches on the surface.
Eyebolt size Flange type
M8 ICF203 / ICF253 / ICF305
M10 VG150 / ISO160F
ISO200F / ISO250F
M12 VG200 / VG250

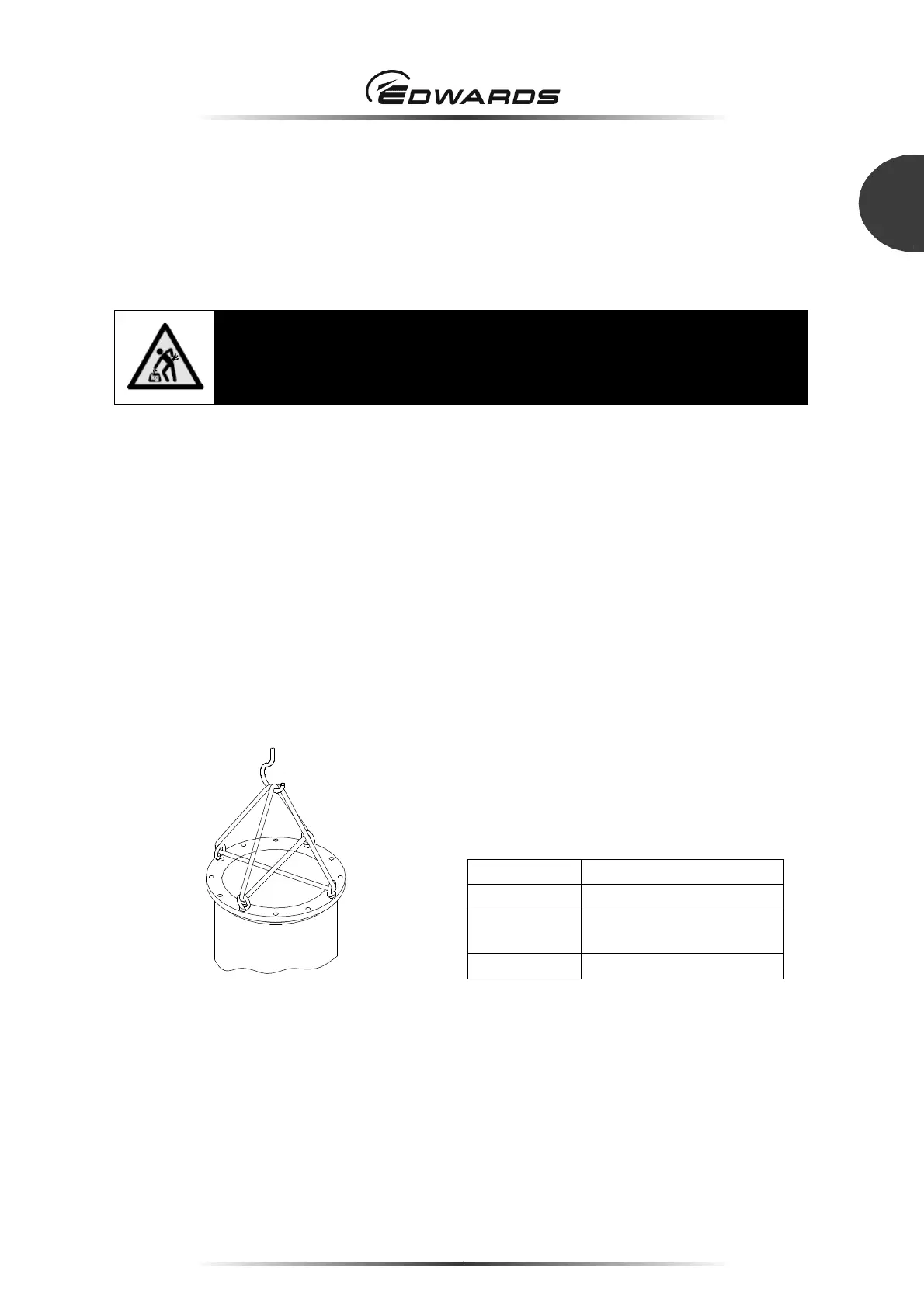

Figure 10 - Example of lifting the STP pump Table 2 - Eyebolt size
