EEC SE 7441 - Page 34

26

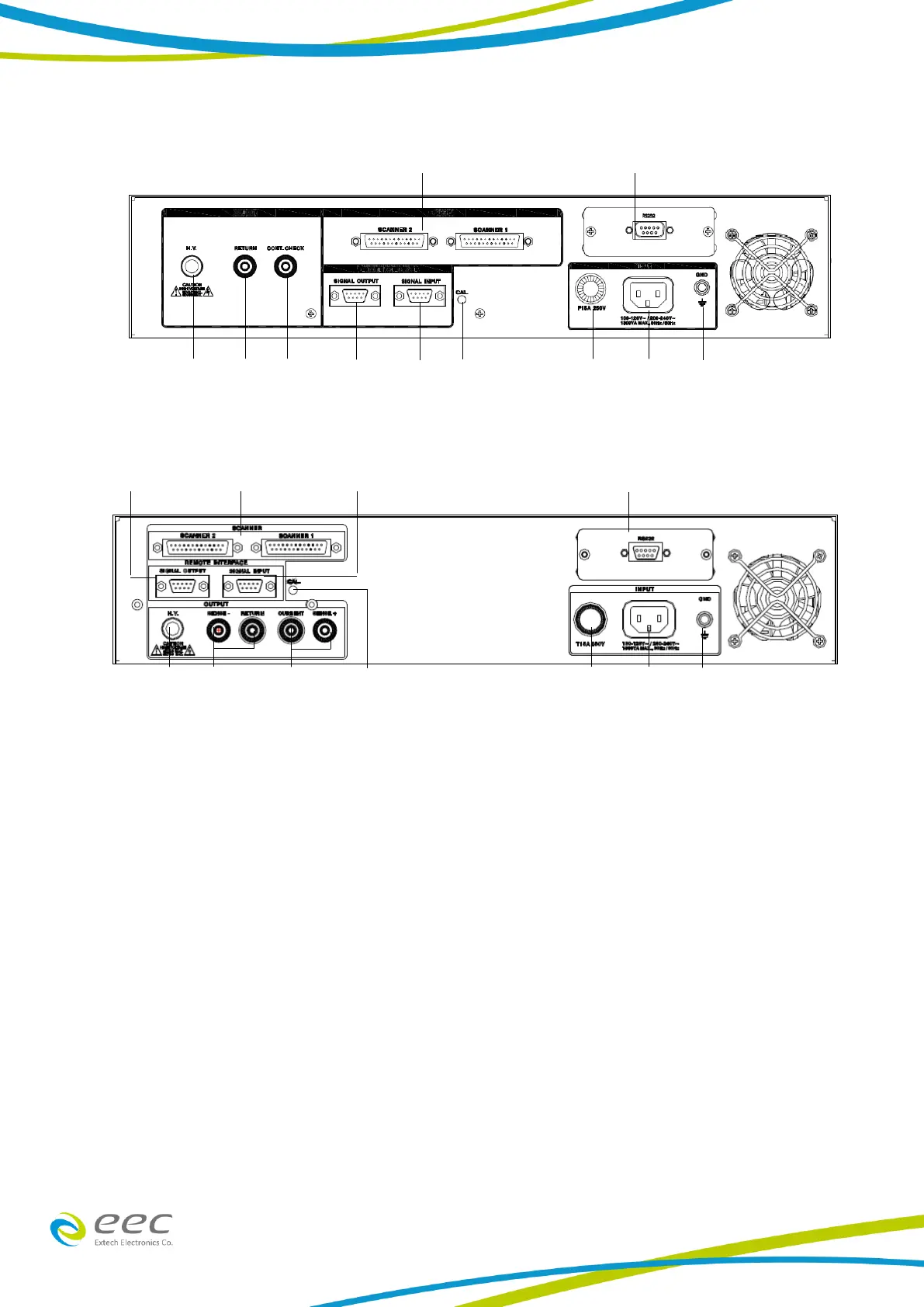

SE7450
SE 7452
1. SCANNER CONNECTOR: For connection of optional external Scanner.
2. REMOTE SIGNAL OUTPUT: 9-Pin D sub-miniature female connector for monitoring PASS, FAIL,
and PROCESSING output relay signals.
3. REMOTE SIGNAL INPUT: 9-Pin D subminiature male connector for remote control of TEST,
RESET, and REMOTE INTERLOCK DISABLE functions, as well as MEMORY SELECTION
4. BUS INTERFACE: Standard connector for interconnection to the RS-232 Bus interface. Optional
IEEE 488, Ethernet, USB interface may be substituted for the RS-232.
5. REAR PANEL HIGH VOLTAGE OUTPUT TERMINAL: 2
nd
high voltage output connector in
parallel with the front panel connector.
6. REAR PANEL RETURN TERMINAL: 2
nd
return output connector in parallel with the front panel
connector.
2
3
4
5
6
7
1
8
9
11
10
2
3
4
5
6
13
1
8
9
11
10
