SpeedStream Router User Guide
• Encapsulation Type
- LLC
- VCMUX
- Traffic Class
- Unspecified Bit Rate
- Constant Bit Rate
- Variable Bit Rate
(Non Real Time)
- Variable Bit Rate
(Real Time)
• Traffic Description Information
(optional)
2. To continue to the Protocol Selection
window, click Next.

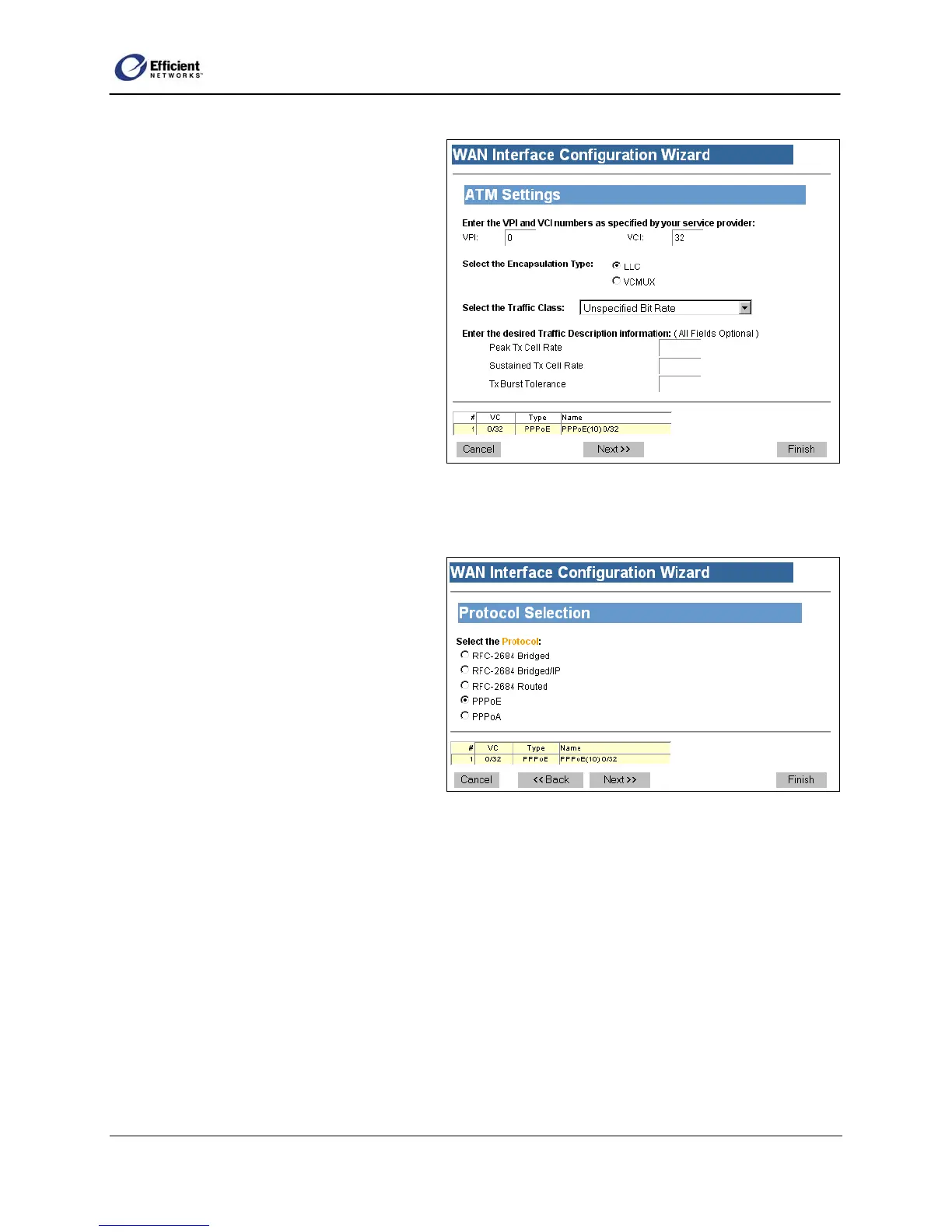

Select WAN Protocol
1. On the Protocol Selection window, you will select from these options:
• RFC-2684 Bridged:
A pure bridged connection wherein
the router accepts RFC-2684
encapsulated traffic from the WAN
and drops the encapsulation to bridge
Ethernet traffic through to the LAN.
No router functions are performed on
this traffic.
• RFC-2684 Bridged/IP:
A bridged connection wherein the
router accepts RFC-2684
encapsulated traffic from the WAN.
Unlike RFC-2684 Bridged protocol, however, the WAN interface has an IP address and handles
the traffic, routing only relevant data on to the appropriate LAN interface(s). The IP address used
for this protocol can be manually entered or, if the ISP provides a DHCP server, can be obtained
using DHCP.
• RFC-2684 Routed:
An IP-driven protocol with different encapsulation than RFC-2684 Bridged, but does route
traffic. Since this protocol does not support DHCP, the IP address must be manually entered.
• PPPoE:
A PPP connection over Ethernet encapsulated using RFC-2684 Bridging protocol. The router can
support up to four PPPoE session per virtual connection. You can configure the PPPoE protocol
in one of four modes:
- Client Mode:
Terminates the PPP traffic and pass on pure Ethernet to the LAN.
32
