SpeedStream Router User Guide
Note Depending on your configuration, NAT is sometimes enabled by default. Disable NAT only in
advanced situations where your ISP has assigned static IP addresses.
2. To continue to the Connection Name
window, click Next.

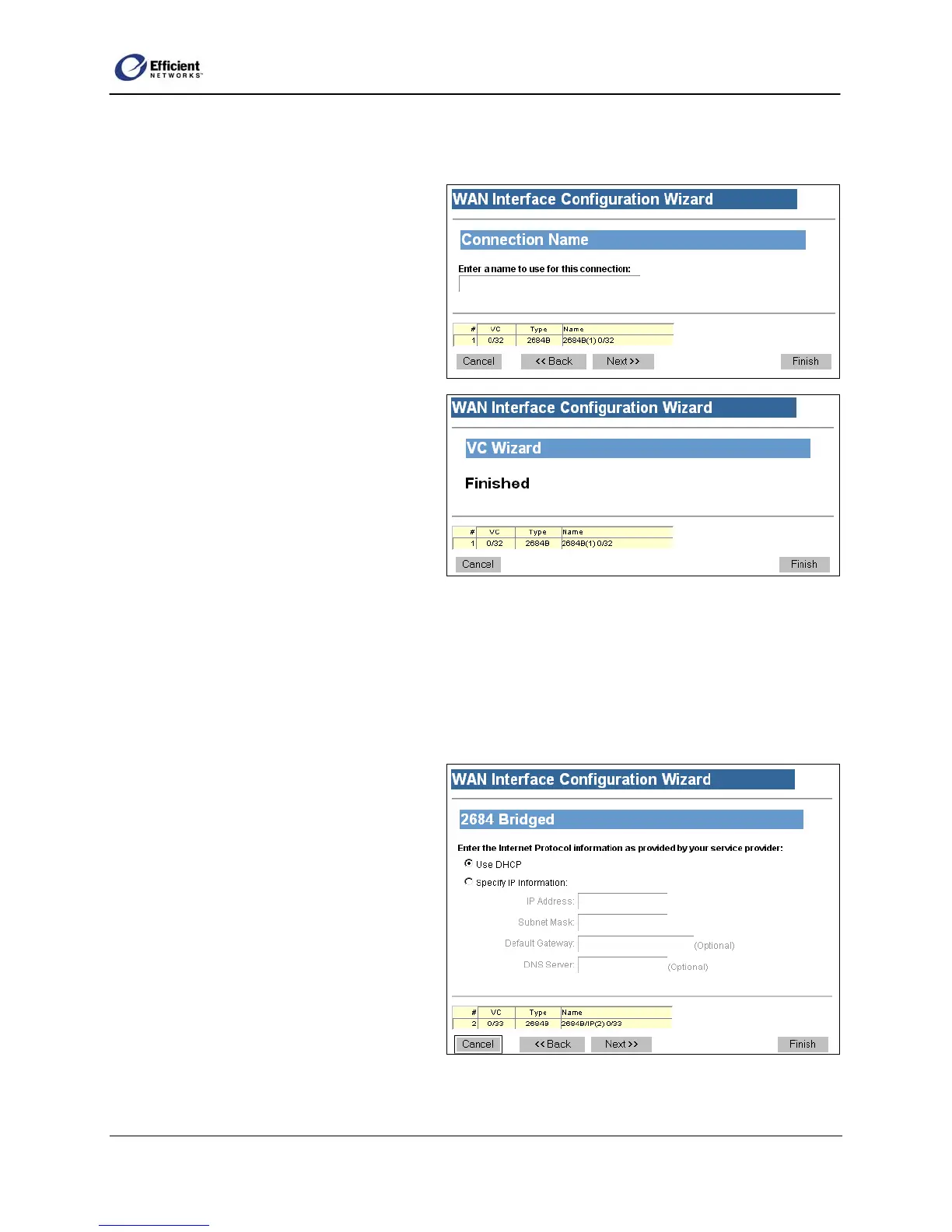

Specify Connection Name
1. On the Connection Name window, enter
a name for the new connection.
2. To complete the configuration process for
the PPPoE/Bridge Only protocol, click
Next.
The VC Wizard window displays.
Finish
•
•
•
On the VC Wizard window, click Finish.
The Current Configuration window
displays the new connection information.
Configure PPPoE / 2684B
Connection
This mode concurrently runs PPPoE with a 2684 Bridge on the same virtual connection.
• On the PPPoE Type window, select 2684B Connection.
The 2684 Bridged window displays
Enter IP Information
1. On the 2684 Bridged window, select to
use DHCP or specify the IP information:
Use DHCP:
If your service provider offers DHCP
server, automatically obtains the IP
address.
Specify IP Information:
Enter IP address, subnet mask, default
gateway (optional) and DNS server
(optional).
2. To continue to the 2684 PPPoE window,
click Next.
Select Interface Options
1. On the Interface Options window, select the desired options:
43
