SpeedStream Router User Guide
error is resolved. This is like an “always on” WAN connection.
Use Idle Timeout:
If the connection sits without transmitting for the specified time, the router will log out the PPP
connection. This helps relieve Internet congestion at the ISP level. The SpeedStream router also
provides a Connect on Demand feature wherein the router automatically reconnects when you
attempt to use the WAN connection. Idle Timeout cannot be used with Autoconnect on
Disconnect.
•
2. To continue to the PPP Static IP window, click Next.

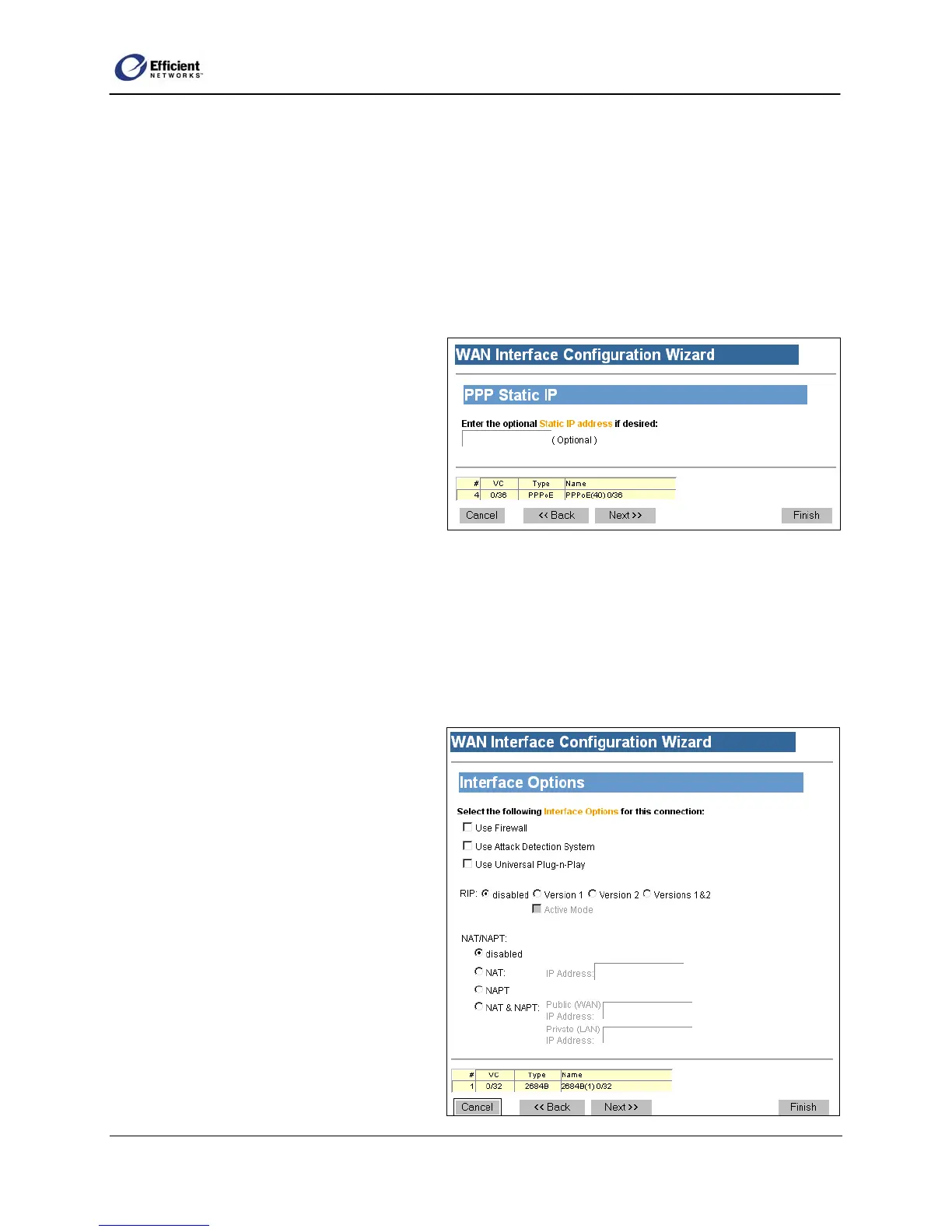

Enter Static IP Address
1. On the PPP Static IP window, you may
enter a static IP address if your service
provider has assigned one (not required).
2. To continue to the Interface Options
window, click Next.
Select Interface Options
1. On the Interface Options window, select
the desired options:
• Use Firewall:
Enable firewall protection.
• Use Attack Detection System:
Enable WAN attack protection.
• Use Universal Plug-n-Play:
Enable devices to discover and control each other via UPnP over the network.
• RIP:
Routing Information Protocol (For
more information, see page 83.)
- Version 1:
Allows RIP version 1 to be
transmitted/received on the
selected interface. Currently,
RIPv1 is seldom used, but
supported on the SpeedStream
router.
- Version 2:
Allows RIP version 2 to be
transmitted/received on the
selected interface. This would be
the most common choice.
- Versions 1 & 2:
Simultaneously supports RIP
versions 1 and 2 on the selected
46
