SpeedStream Router User Guide
- Disabled:
Disable both NAT and NAPT (for example, if setting up static routes).
- NAT:
Enable NAT only and specify the destination IP address for incoming packets on the selected
WAN interface.
- NAPT:
Enable NAPT only to handle multiple addresses based on port forwarding rules.
- NAT & NAPT:
Enable concurrent NAT and NAPT
Note Depending on your configuration, NAT is sometimes enabled by default. Disable NAT only in
advanced situations where your ISP has assigned static IP addresses.
2. To continue to the Connection Name
window, click Next.

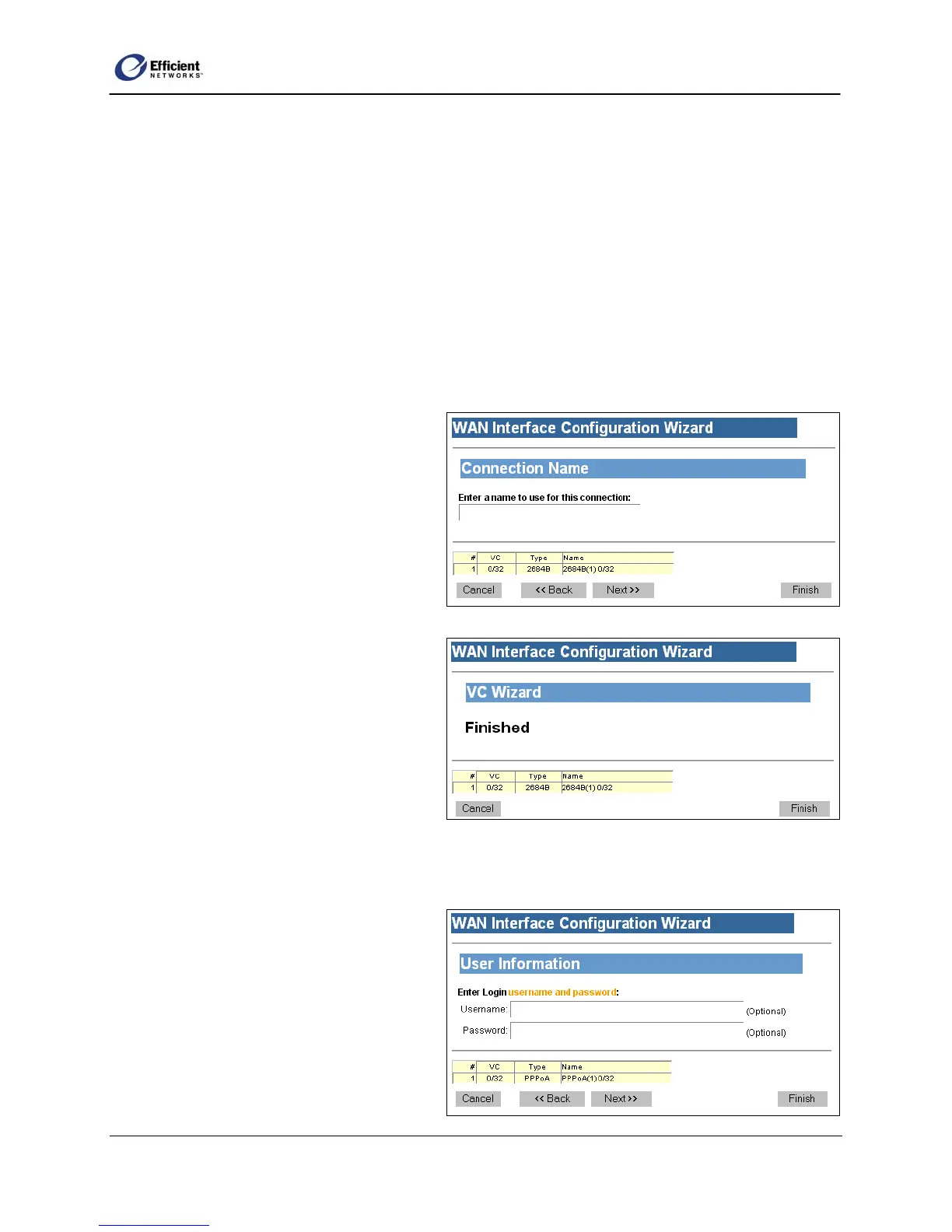

Specify Connection Name
1. On the Connection Name window, enter
a name for the new connection.
2. To complete the configuration process for
the PPPoE/PPPoE Bridge protocol, click
Next.
The VC Wizard window displays.
Finish
On the VC Wizard window, click Finish.
•
•
The Current Configuration window
displays the new connection information.
Configure PPPoA Protocol
PPPoA is a PPP connection over ATM cells with encapsulation using either LLC or VCMUX; routes
traffic.
On the PPPoE Type window, select PPPoA.
The User Information window displays
Enter User Information
1. On the User Information window, you
can enter a new login username and
password (not required).
2. To continue to the PPP Options window,
click Next.
52
