SpeedStream Router User Guide
- Version 1:
Allows RIP version 1 to be transmitted/received on the selected interface. Currently, RIPv1 is
seldom used, but supported on the SpeedStream router.
- Version 2:
Allows RIP version 2 to be transmitted/received on the selected interface. This would be the
most common choice.
- Versions 1 & 2:
Simultaneously supports RIP versions 1 and 2 on the selected interface.
- Active Mode:
In enabled, the router will receive routing updates on the selected interface and will broadcast
regular routing updates to other routers. If not enabled (default), the router will receive
routing updates on this interface, but will not broadcast routing tables.
NAT/NAPT:
Enable Network Address Translation (NAT) and/or Network Address Port Translation (NAPT).
For more information on using NAT and NAPT, see page 65.
•
•
- Disabled:
Disable both NAT and NAPT (for example, if setting up static routes).
- NAT:
Enable NAT only and specify the destination IP address for incoming packets on the selected
WAN interface.
- NAPT:
Enable NAPT only to handle multiple addresses based on port forwarding rules.
- NAT & NAPT:
Enable concurrent NAT and NAPT
Note Depending on your configuration, NAT is sometimes enabled by default. Disable NAT only in
advanced situations where your ISP has
assigned static IP addresses.
2. To continue to the Connection Name
window, click Next.

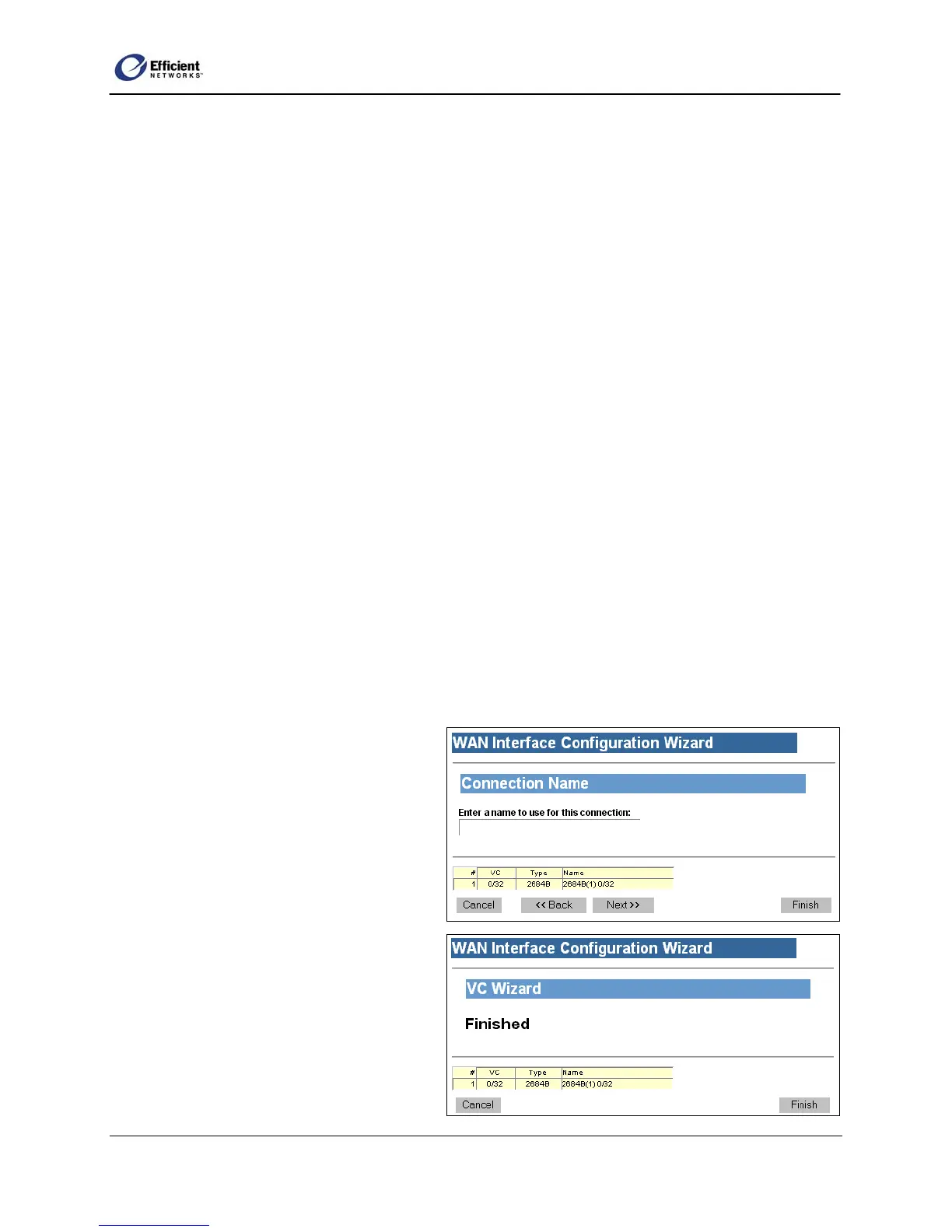

Specify Connection Name
1. On the Connection Name window, enter
a name for the new connection.
2. To complete the configuration process for
the PPPoA protocol, click Next.
The VC Wizard window displays.
Finish
On the VC Wizard window, click Finish.
The Current Configuration window
displays the new connection information.
54
