Installation
Frame/Seattube
Cable housing / bowden insallation

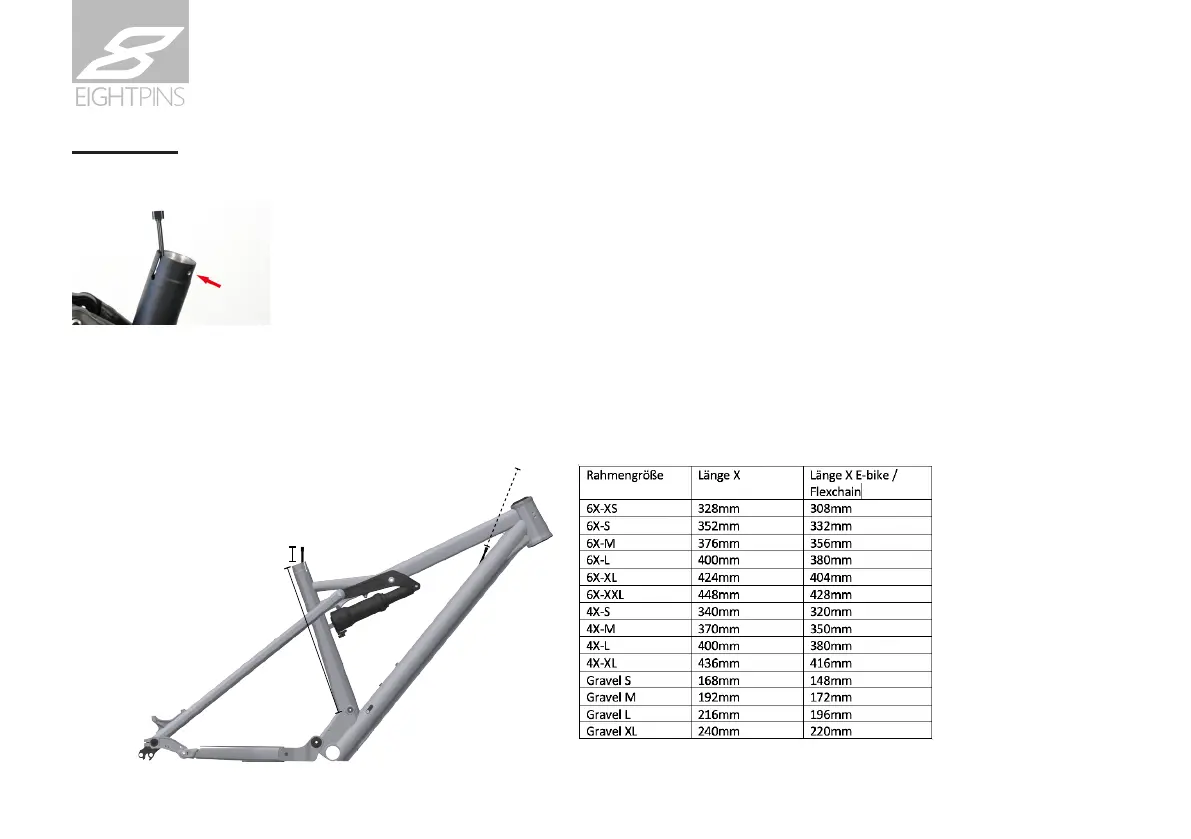

Install the cable housing in the frame before installing the seat post. Please follow the instructions of the frame manufacturer. The cable housing is
to be inserted into the seat tube until about 2 cm of it reach out of it. The second end of the housing – at the top of the frame – is to be cut depen-
ding on the frame size. The cable housing is pushed further out of the frame during assembly of the seat post by the length X. Observe the following
table when cutting the cable housing and shorten it to the desired length.
Theframemusthavea5mmholeatthetopoftheseattubetomountandxtheoutersleeve.Ifthisholedoesnot
exist,refertothemanualoftheframesuppliertondouthowtodrillthisholeintheseattubeoftheframe.
ca. 20mm
Länge X
length X
Länge X
length X
