26
EIGHTPINS

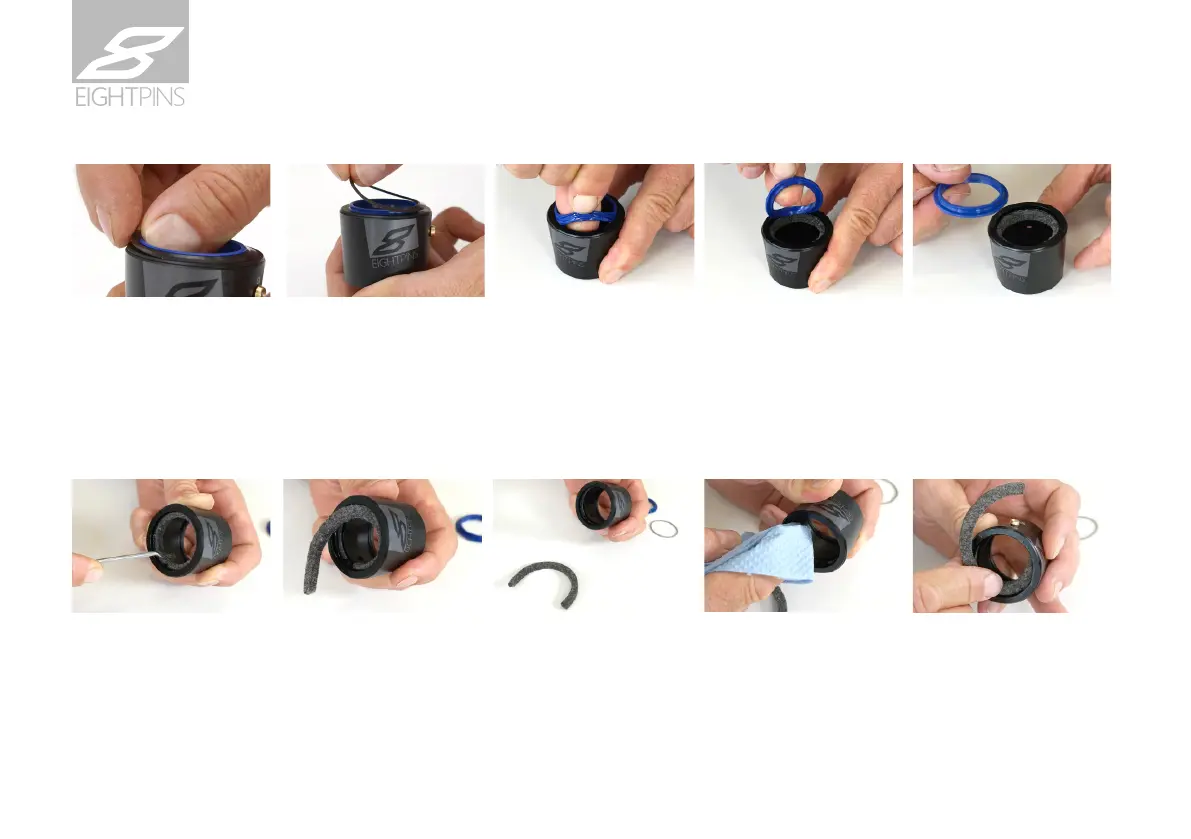

Service of the outer sleeve
Pullo󰀨thesealinglipring. Carefully pull the blue wiper
out of the groove.
Find the end of the felt ring
with a small pointed object
and lift it up.
Carefully pull out the felt
ring.
Clean or replace the felt
ring.
Clean the inside of the
outer sleeve with a cloth.
Carefully insert one end of
the dry felt ring back into
the groove.
Pullo󰀨thesealinglip
ring. Push the blue wiper
towards the edge. Then
the sealing lip ring can be
removed.
