Service

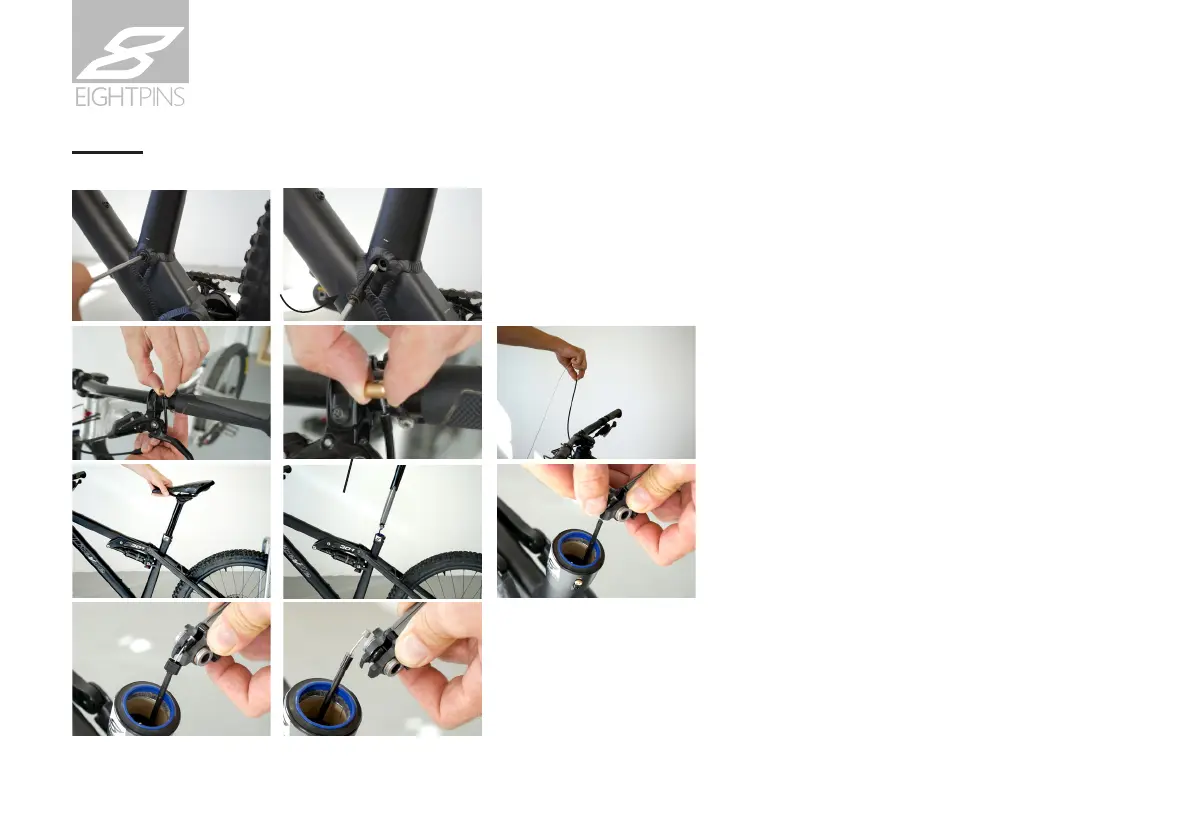

Removal of the seat post for service purposes
Unscrew the Postpin axis with a 5mm Allen key.
Unhook the control cable from the control lever (on bar
remote) or detach the control lever from the handlebar
(underbar remote)
Onbar remote: Operate the control lever. Hold the cable
clamp and pull or tilt forward. Then pull the outer shell out
of the remote.
Slowly pull the seat post out of the frame. Pull the special
bowden end cap for the cable housing out of the holder.
Unhook the cable head from the actuation lever for the
hydraulic gas spring. If necessary, operate the lever by
hand to create more space for hanging out.
