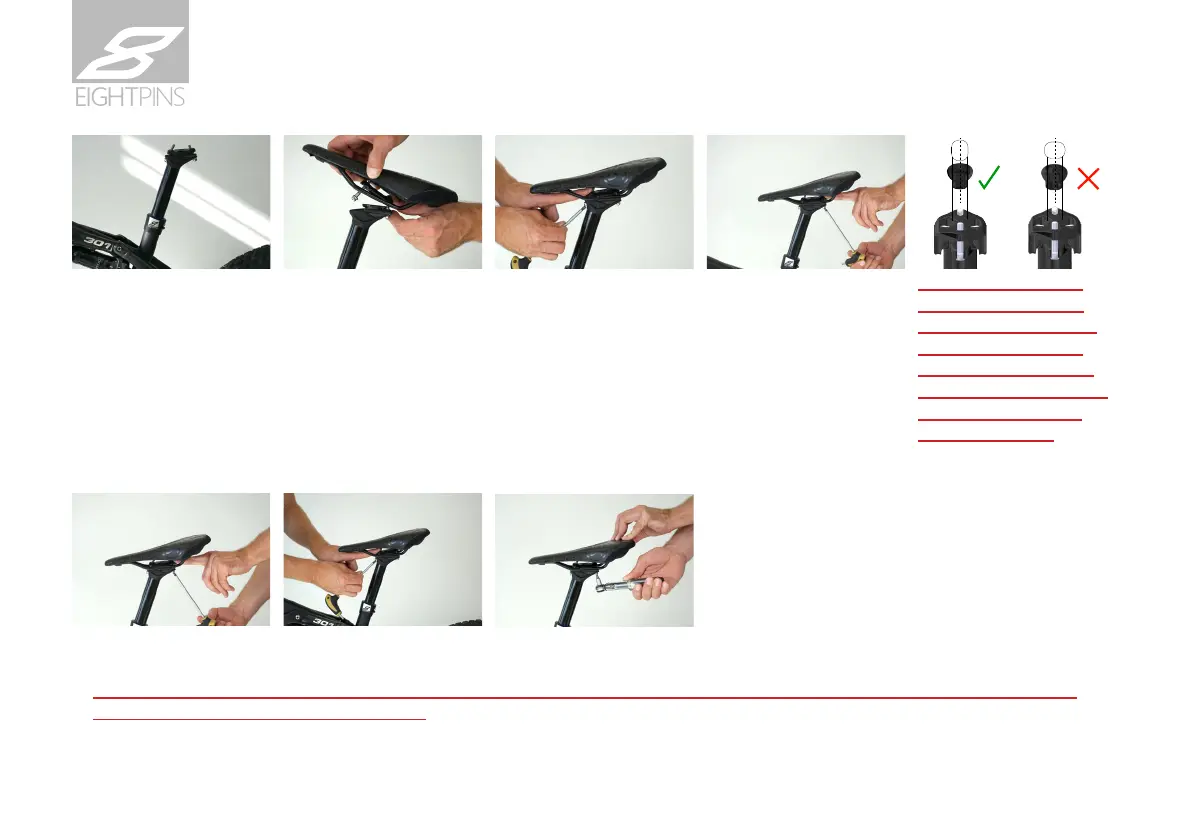

Adjustment of the saddle angle
Before the Postpin axle is
tightened, the saddle must
be installed to align the seat
post.
Loosen both seat clamp
screws and unhook the
front seat clamp screw to
the front. Lift the upper
saddle clamp and position it
above the two saddle rails.
Let the saddle frame rails
rest on the lower saddle
clamp plate and hang the
front saddle clamp screw
back in. Loosely tighten
both seat clamp screws.
When tightening the saddle
clamp screws, press the
saddle clamp nuts down
withyourngersothatthey
completely disappear into
the upper saddle clamp
plate.
Attention!The nuts
which are installed
in the top seatclamp
have two small at
areas which have to
be aligned in the long
hole parallel to the
riding direction.
Attention! The screws on the seat post head must not be tightened more than the specied torque of 8Nm. It could
break. This increases the risk of injury.
Loosen the rear fastening screw on the seat post head
with a 5mm Allen key. Adjust the saddle inclination by tur-
ning the front seat clamp screw. After aligning the saddle
inclination with the help of the front and rear saddle
clamping screw, the rear screw must be tightened with a
torque tool with a maximum torque of 8Nm.
