31

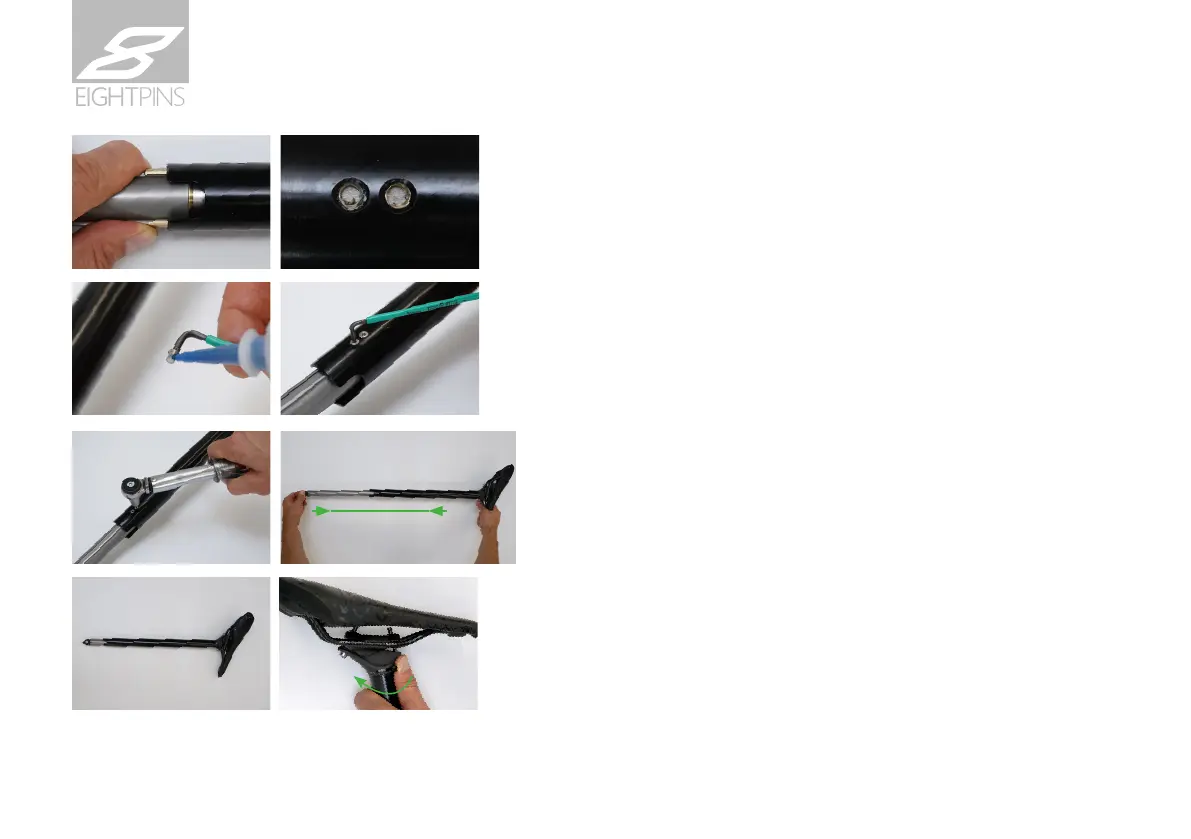

Insert the cartridge unit into the seat post tube until the holes align with the screw
holes of the longitudinal guide blocks.
Drip high-strength screw lock on the four mounting screws for the longitudinal guiding
blocksandscrewthemincarefully.Itisbesttorstalignonesideandthenbypushing
in or pulling out the cartridge unit, align the longitudinal guide shoe on the other side
with the holes and screw tight.
Note! We recommend to use Loctite 270 screw lock.
Before tightening the screws, the cartridge must be pushed as far as possible
into the seat post tube. Tighten all four screws with a torque of 3Nm.
Push the seat post back together and push the lever for the height adjustment back to
the closed position.
