12

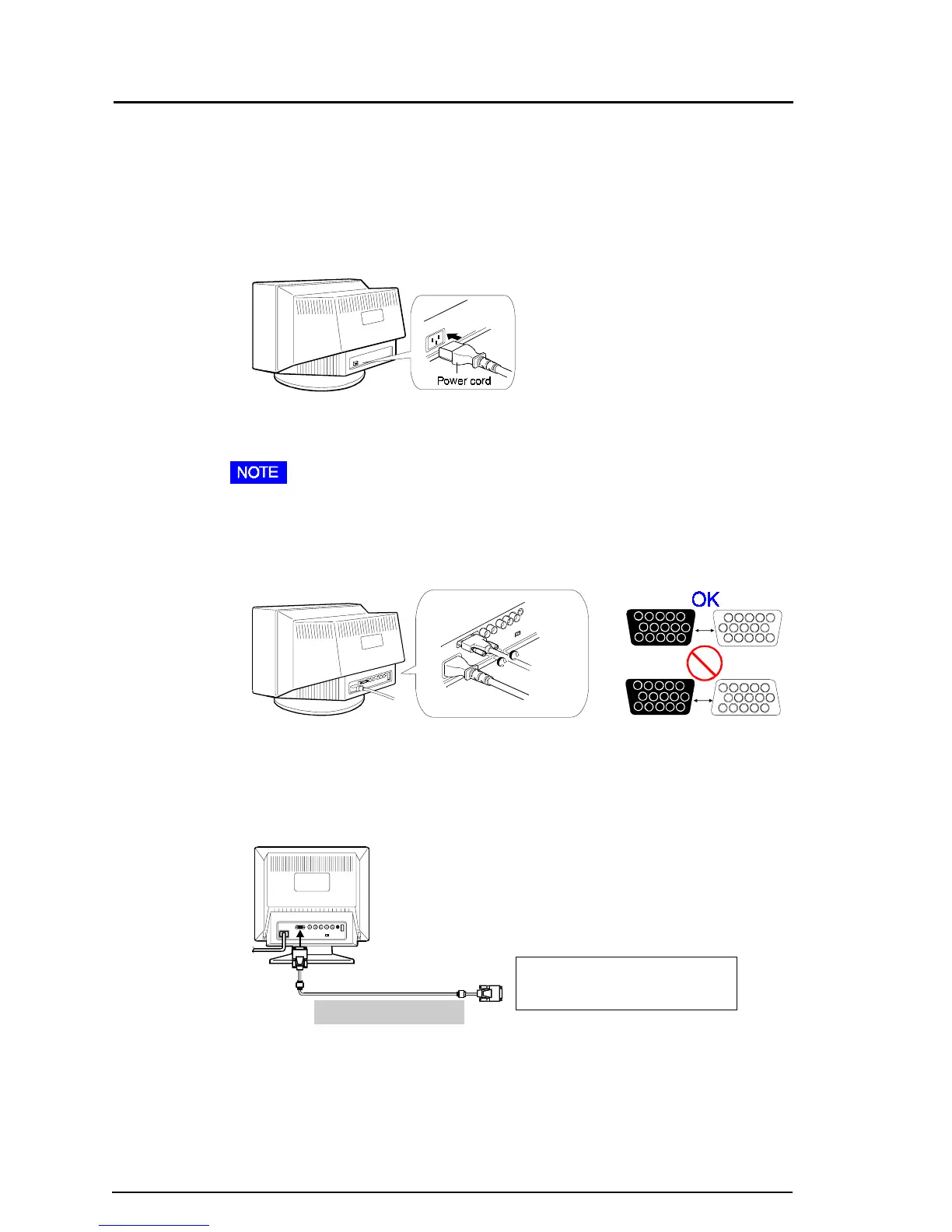

1 INSTALLATION
1-2 Connecting the monitor to the PC
1) Be sure that the power switches of both the PC and the monitor are
OFF.
2) Plug the power cord into the power connector at the rear of the monitor.
Then plug the other end of the cord into a power outlet.
3) Plug the signal cable into the connector at the rear of the monitor.
• When connecting the signal cable or cable adapter, first check that the
shape at the cable side matches the shape at the connecting side.
After connecting, secure the connection with the screw-in fasteners.
4) Plug the other end of the cable into the video connector on the rear of
the PC. Refer to the figures below.
Standard PC graphics board
D-Sub
mini 15 pin
D-Sub
mini 15 pin
MD-C87 (enclosed)
Standard PC graphics board
To Next Page
