ii
APPENDIX
APPENDIX
Input signal
Connector
Sync on green
Composite sync
Separate sync
H.Sync
N/A
TTL H/V
composite
sync
TTL
H. Sync
V. Sync
N/A
N/A
TTL
V. Sync
Green
Green
Composite
sync
Green
Green
Red
Red
Red
Red
Blue
Blue
Blue
Blue

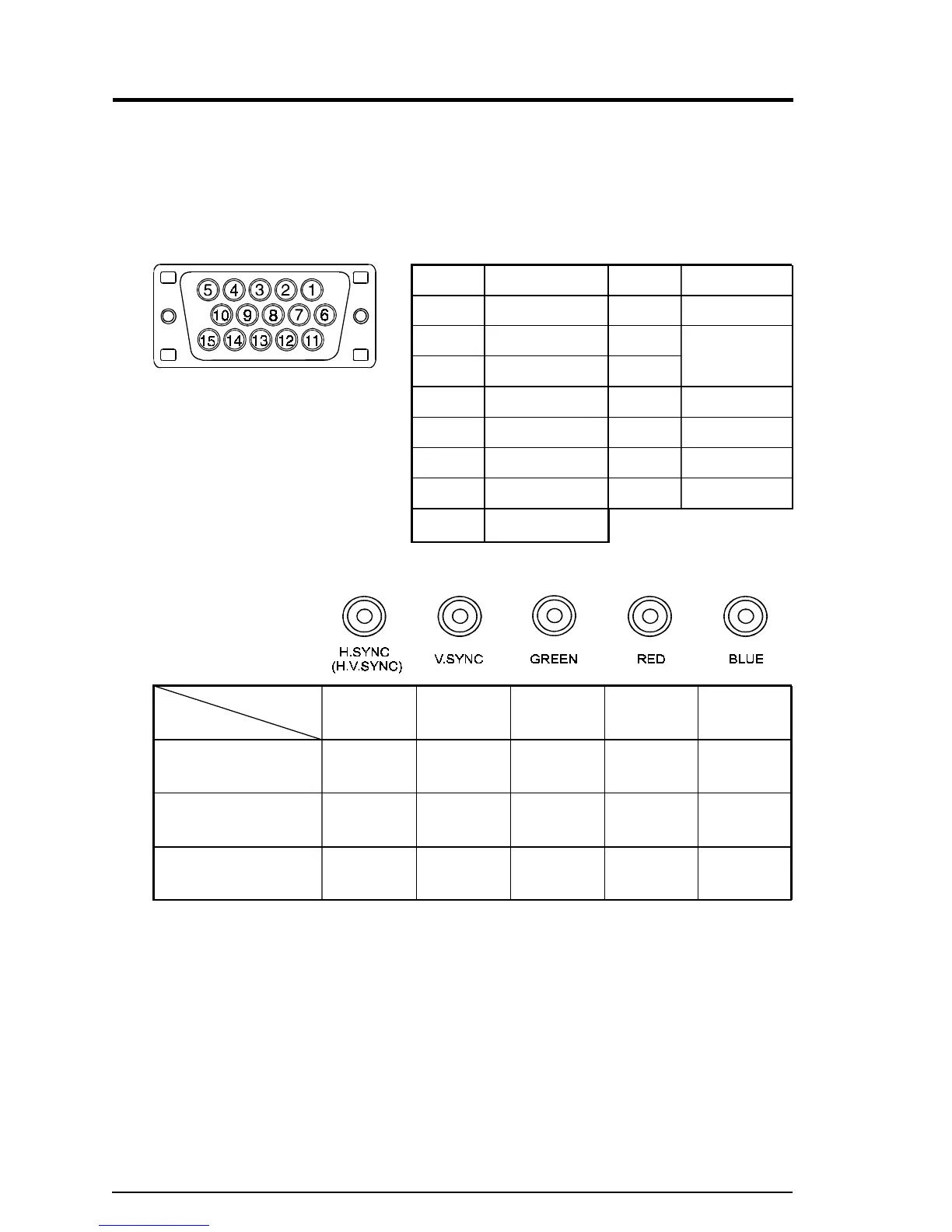

Pin Assignment
Pin-Belegung
Affectation des Broches
D-Sub mini 15 pin connector
Pin No. Signal Pin No. Signal
1 Red video 9 No pin
2 Green video 10 Ground
3 Blue video 11 (shorted)
4 Ground 12 Data
5 No pin 13 H. Sync
6 Red ground 14 V. Sync
7 Green ground 15 Clock
8 Blue ground
BNC connector
