Chapter 1 Introduction
●

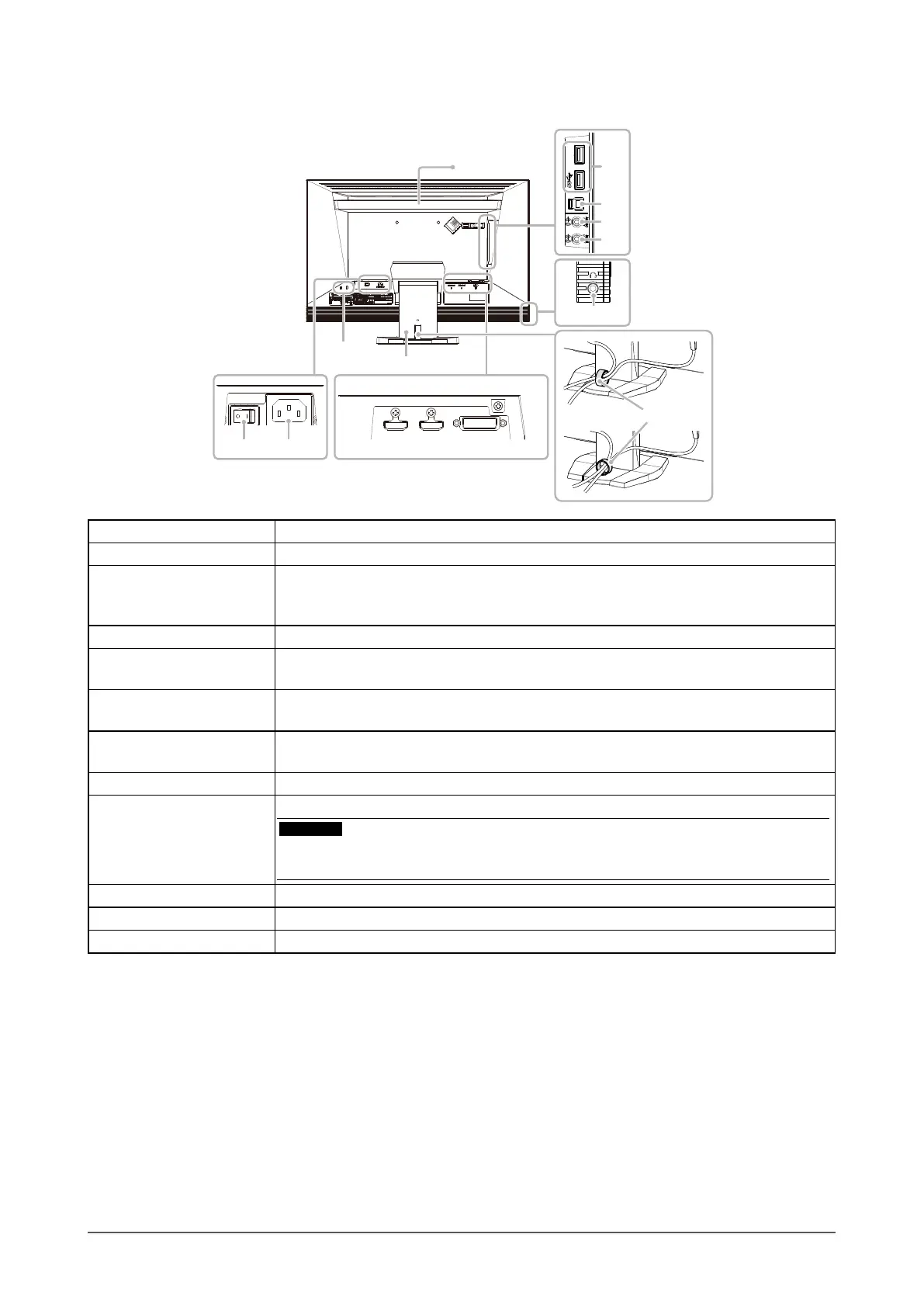

Rear
17
18
10
15
16
8 9
13
12
11
14
19
8. Main power switch Turns the main power on or off.
9. Power connector Connects the power cord.
10. Input signal connector
(Left: HDMI connector (HDMI1) / Center: HDMI connector (HDMI2) /
Right: DVI-D connector)
Connects external devices such as a PC.
11. USB downstream port Connects a peripheral USB device.
12. USB upstream port
Connects the USB cable to use software that needs a USB connection, or to use the
USB hub function (page 51).
13. Line output connector
(Stereo mini jack)
Connects a speaker with built-in amplier (page 41).
14. Line input connector
(Stereo mini jack)
Connects external devices such as a PC.
15. Headphone jack Connects the headphones.
16. Handle
Handle used for transportation
Attention
• Firmly grasp and hold the monitor by the bottom while grabbing the handle, and
carefully convey the monitor so as not to drop it.
17. Security lock slot Complies with Kensington’s MicroSaver security system.
18. Stand
*2
Adjusts the height and angle (tilt and swivel) of the monitor.
19. Cable holder Covers the monitor cables.
*2 An optional arm (or an optional stand) can be attached by removing the stand (see “8-1. How to Attach the
Optional Arm” (page 46)).
