On-board troubleshooting
16

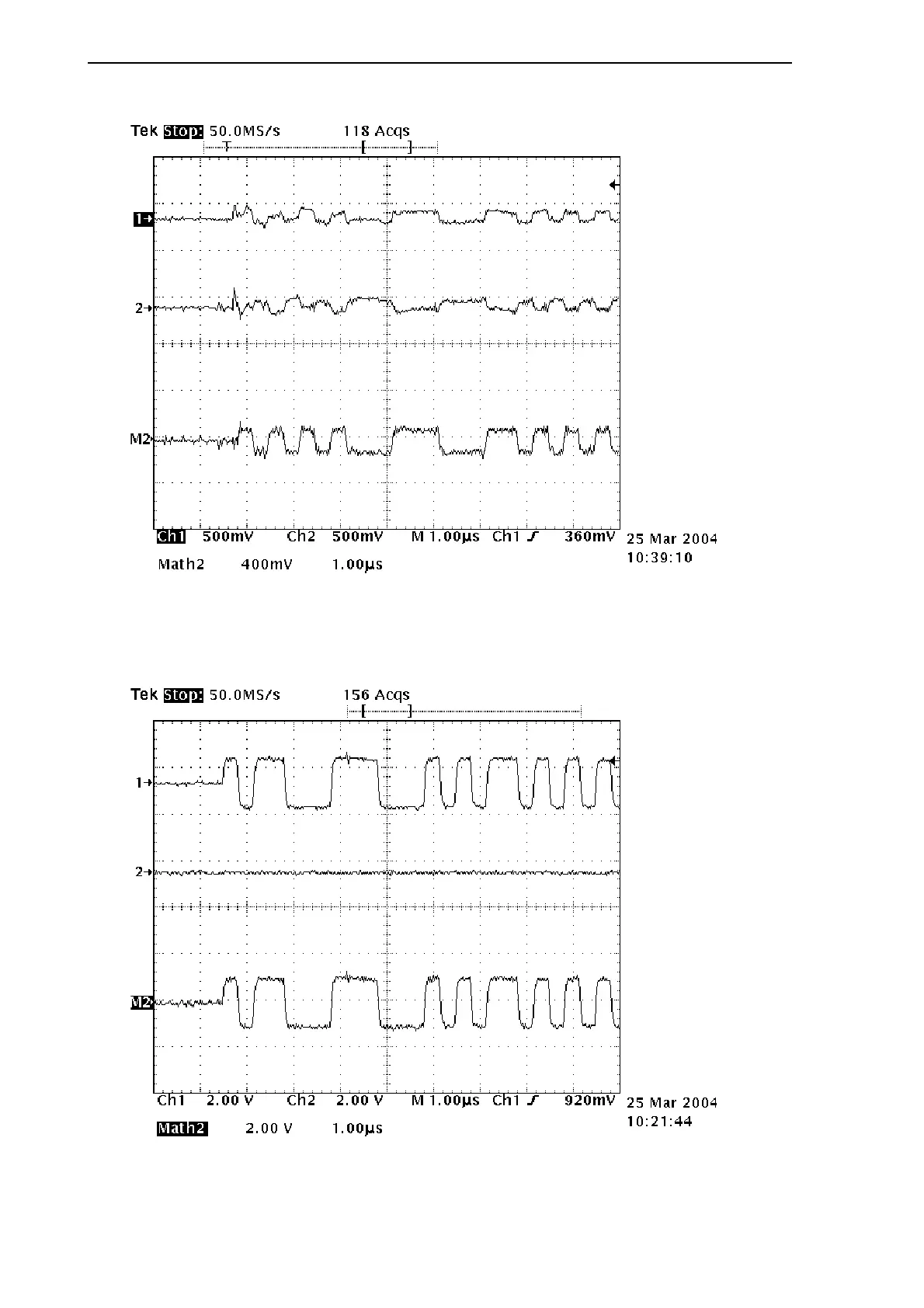

The following figure shows a waveform that indicates a low signal level.
Figure 4.2: Low signal level
The following figure indicates a missing half in a differential signal.
Figure 4.3: Missing half of the differential signal
