EKOM DK50-10 - Pneumatic Diagram

DK50-10
01/2022 - 21 - NP-DK50-10-16_01-2022-MD

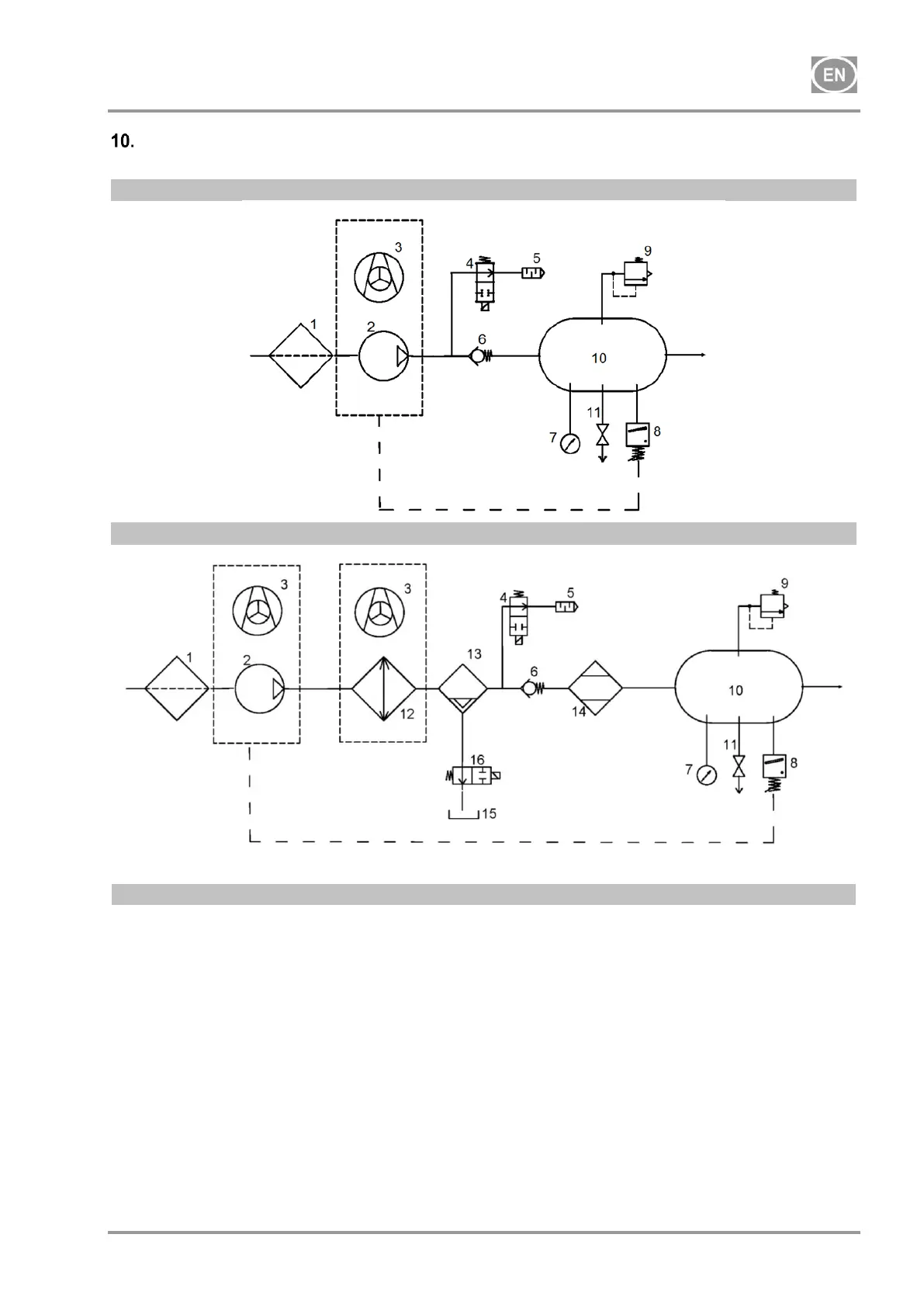

PNEUMATIC DIAGRAM
DK50-10Z, DK50-10S
DK50-10Z/M, DK50-10S/M
Legend for compressed air diagram
1 Inlet filter
2 Air pump motor
3 Fan
4 Relief valve
5 Noise silencer
6 Non-return valve
7 Pressure gauge
8 Pressure switch
9 Safety valve
10 Air tank
11 Drain valve
12 Cooler
13 Coalescence filter
14 Membrane dryer
15 Condensate collection vessel
16 Condensate drain solenoid valve
