Installing System / Conduit
3.3.2. CONDUIT
Install conduit and wire gutters between all mounted enclosures.
Take a picture of the conduit installation within the PowerTools
app and press 'Next' to proceed to the next step.
3.3.2.1. CONDUIT AND PLUGS
Inverter and auto-transformer are for conduit fittings of a diameter of
1''. The main enclosure to add-on enclosures are for conduit fittings of
1.5". An appropriate conduit adapter should be applied when conduit
fittings with dierent dimensions are used.

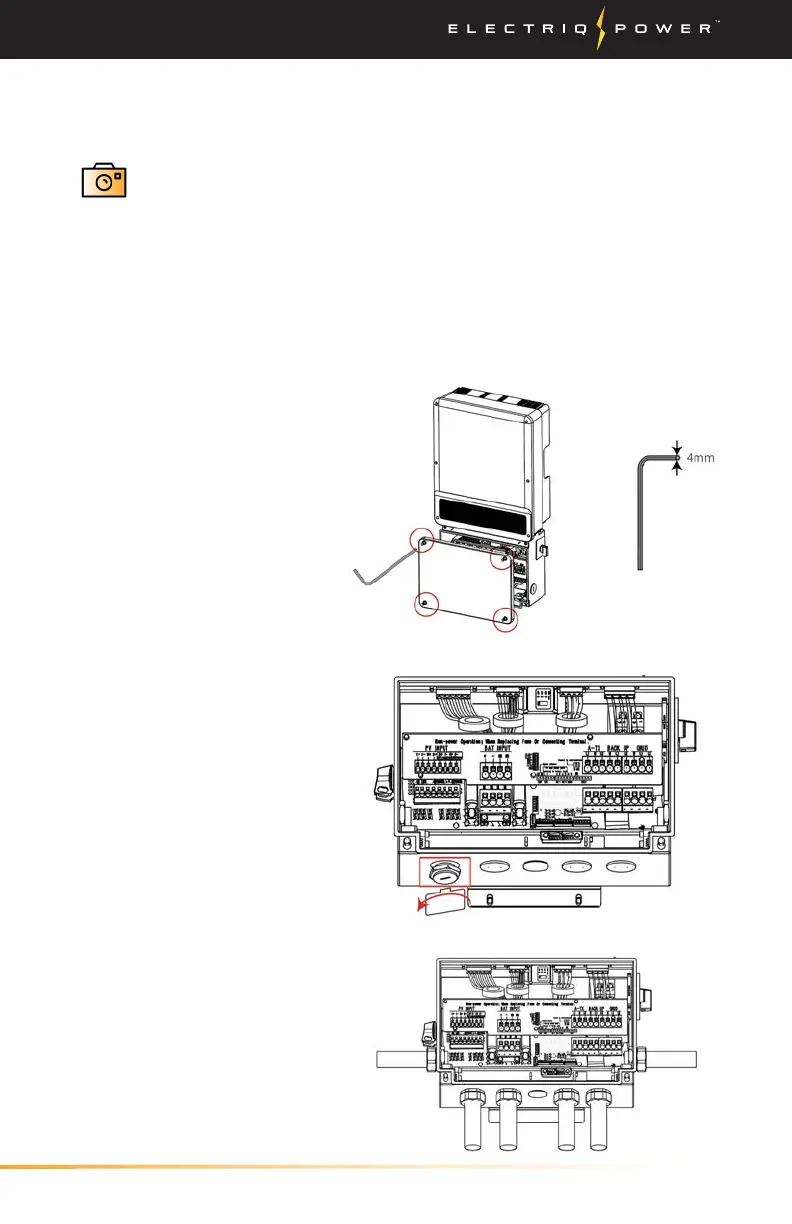

1. Remove the 4 screws by
Allen Wrench to remove
the shelter of connection
box.
2. Remove the waterproof
cover by a cap removal tool.
3. Insert the corresponding
conduit and fittings, then
fasten the joint.
