3.3.5.2. CTs
Two CTs in product box are required for the system installation
to detect grid current direction and magnitude for proper system
orientation. Follow the steps below to properly configure the two CTs:
1. Locate the two CTs in the accessory box.
2. The two grid CTs must be connected on the L1 and L2 inputs on
the main panel.

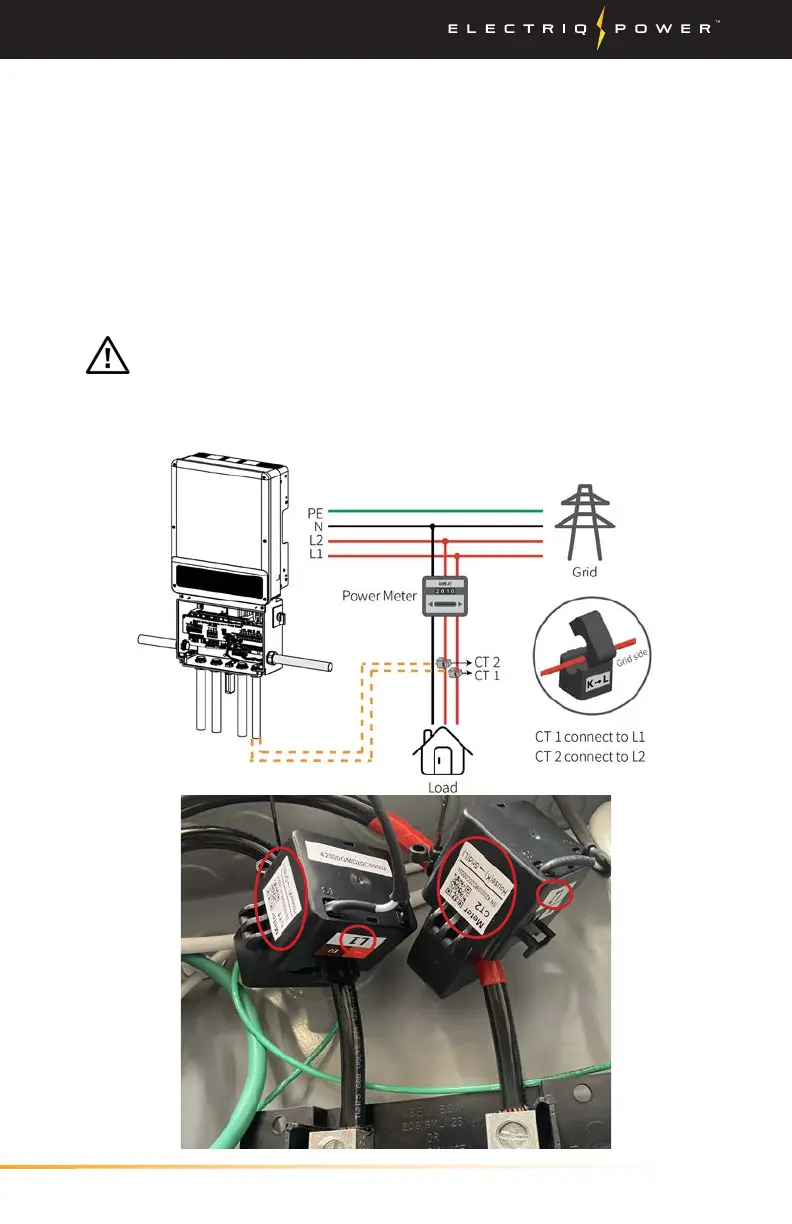

CT Connection
CAUTION: Make sure AC cable is totally isolated from AC
power before connecting CT.
Assurez-vous que le câble AC est totalement isolé de la
puissance AC avant de connecter CT.
