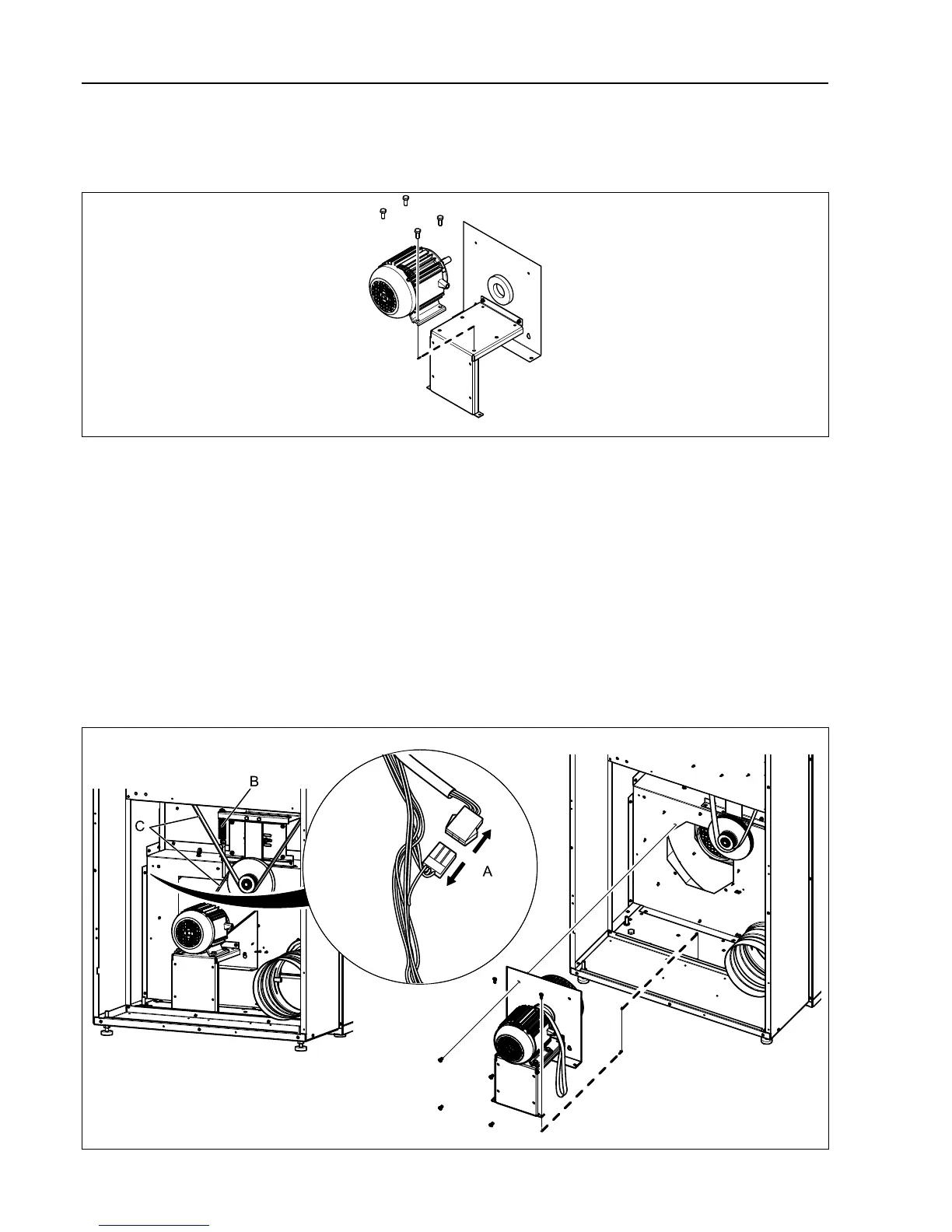

Demount the fan motor.
Before mounting the new motor it is important to lubricate the motor shaft with an anti-fretting paste (Antifret LAGF 3
/ 0.6 or similar quality).
Mount the new fan motor. Thighten the screws with tightening torque 20 Nm.
Remount the fan wheel on the fan motor. Lubricate the screw using a protection product such as Omnifit Seal 40M or
similar and tighten the screw with tightening torque 5 Nm.
Remount the fan module in the machine.
Connect the motor cable.
Remount the rear panel.
On machines without reversing
Disconnect the power to the machine.
Demount the rear panel.
Disconnect the motor cable (A).
Loosen the belt tensioner (B).
Loosen both of the belts (C).
Demount the fan module.
