Electrolux T5350 - Fan Motor Replacement

Service Manual
23
Before mounting the new motor it is important to lubricate the motor shaft with an anti-fretting paste (Antifret LAGF 3
/ 0.6 or similar quality).
Mount the new motor on the bracket. Tighten the screws (D) with tightening torque 3 Nm. Remount the motor module
in the machine.
Fasten the belts and make sure the belts are in position. Fasten the belt tensioner and connect the motor cable.
Remount the rear panel.
7.2 Replacement of fan motor
On machines with reversing
Disconnect the power to the machine.
Demount the rear panel.

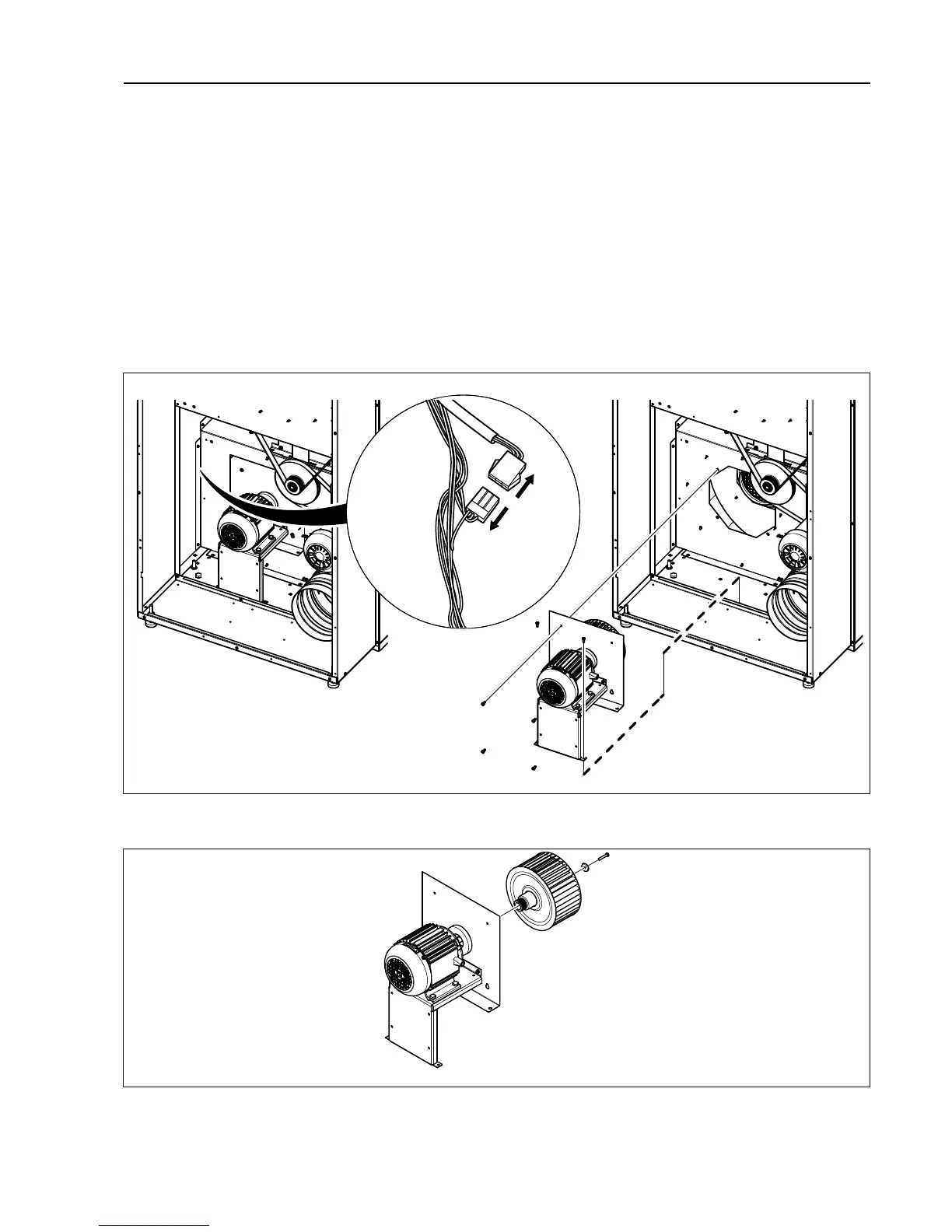

Disconnect the motor cable.
Demount the fan module.
fig.7873
Demount the screw and pull off the fan wheel.
fig.7888
