Electrolux T5350 - Fan Replacement

26
Service Manual
7.3 Replacement of fan
On machines with reversing
Disconnect the power to the machine.
Demount the rear panel.

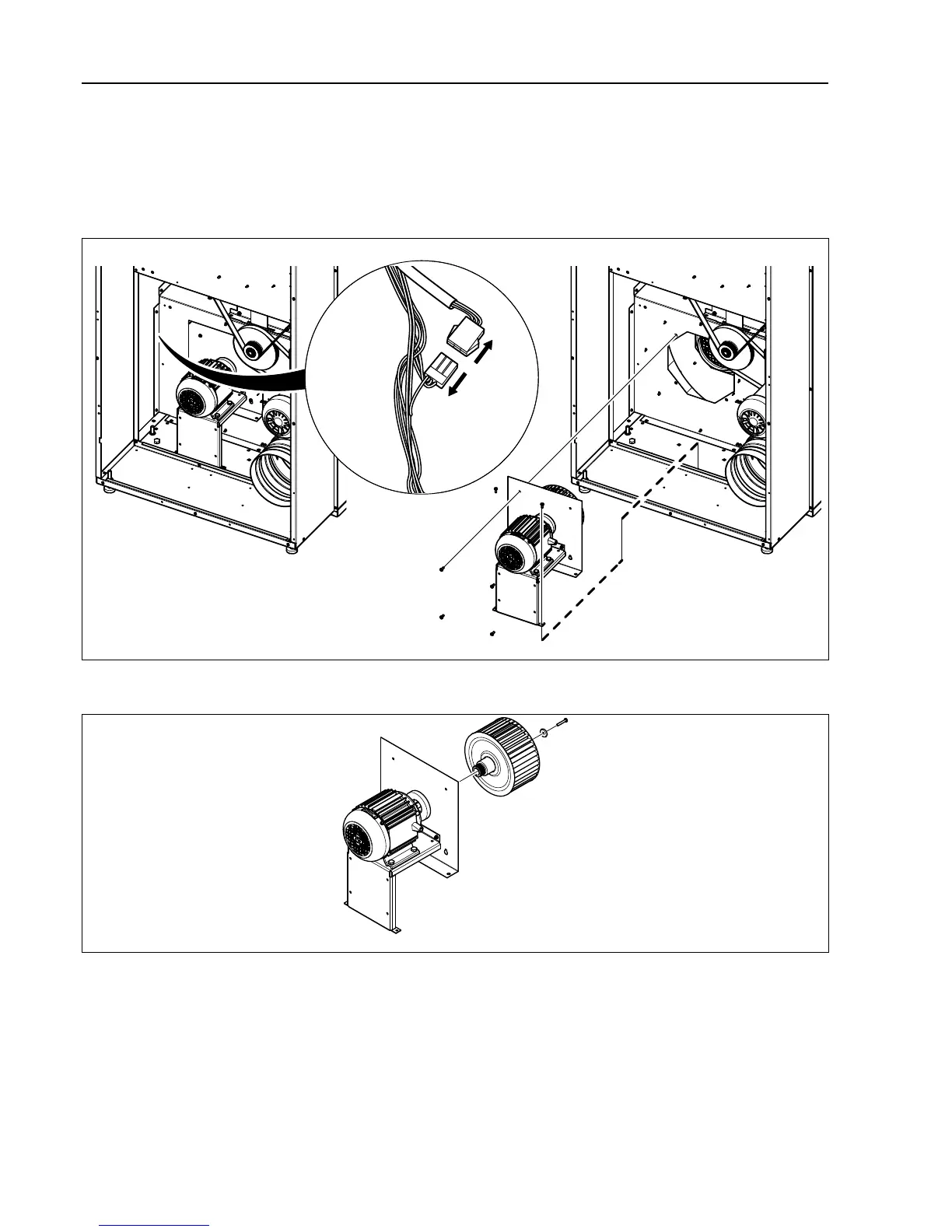

Disconnect the motor cable.
Demount the fan module.
fig.7873
Demount the screw and pull off the fan wheel.
fig.7888
Mount the new fan wheel on the fan motor. Lubricate the screw using a protection product such as Omnifit Seal 40M
or similar and tighten the screw with tightening torque 5 Nm.
Remount the fan module in the machine.
Connect the motor cable.
Remount the rear panel.
