Electrolux T5350 - Steam Heating Unit; Steam Calorifier Replacement

Service Manual
47
10Heating unit, steam
10.1 Replacement of steam calorifier
Disconnect the power to the machine.
Shut off the steam and demount the steam inlet and outlet hose.
Demount the rear panel.

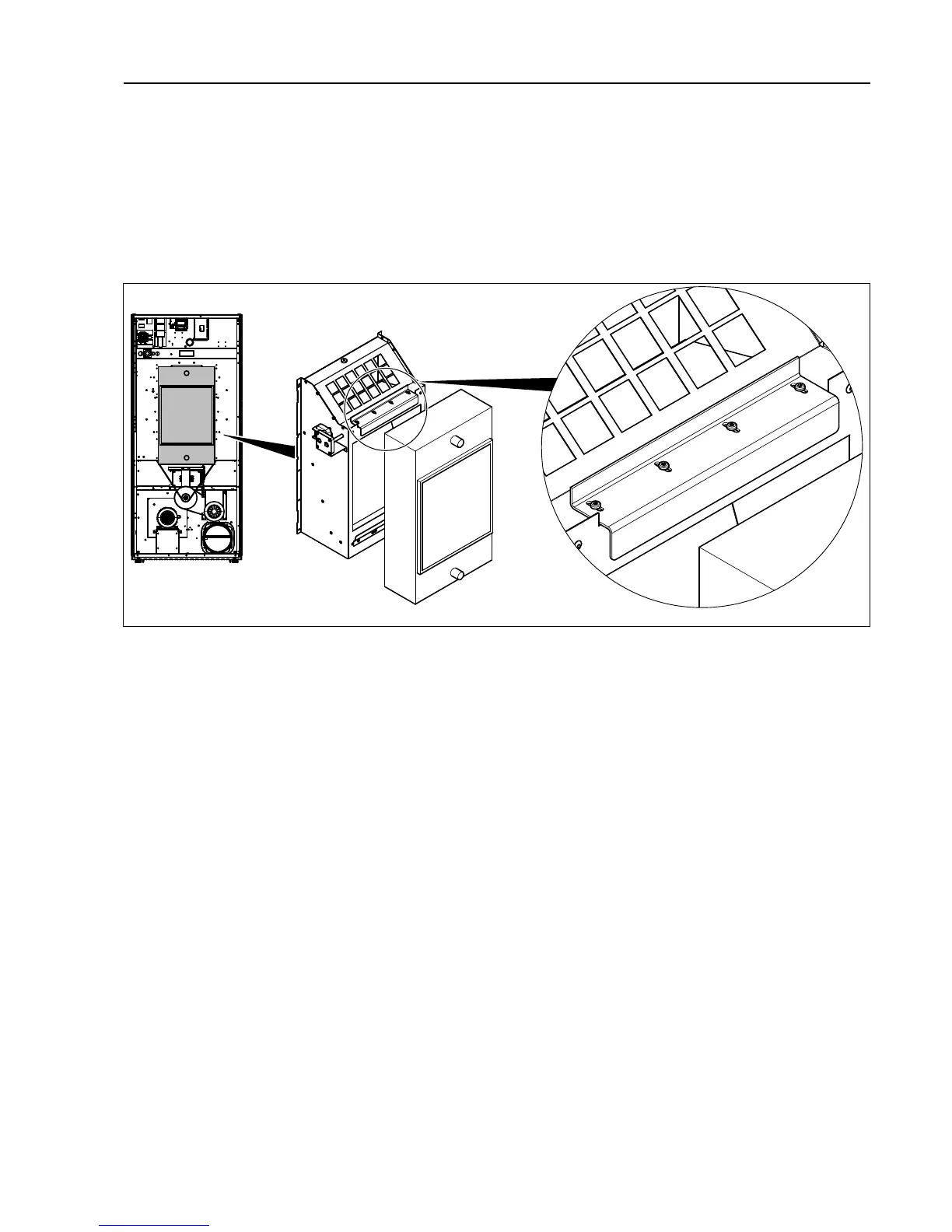

Loosen the screws on the bracket that is holding the steam calorifier and push the bracket towards you. Carefully lift
off the steam calorifier.
Note that the steam calorifier also needs to be loosened from the mounting rail at the bottom.
fig.7929
Mount the new steam calorifier. Tighten the screws a bit first when putting the steam calorifier in position. Loosen the
screws again and push the steam calorifier and bracket inwards as far as possible. Tighten the screws when it is in
position.
Note!
To prevent heat leakage it is important to put back the steam calorifier in correct position.
