Service Manual

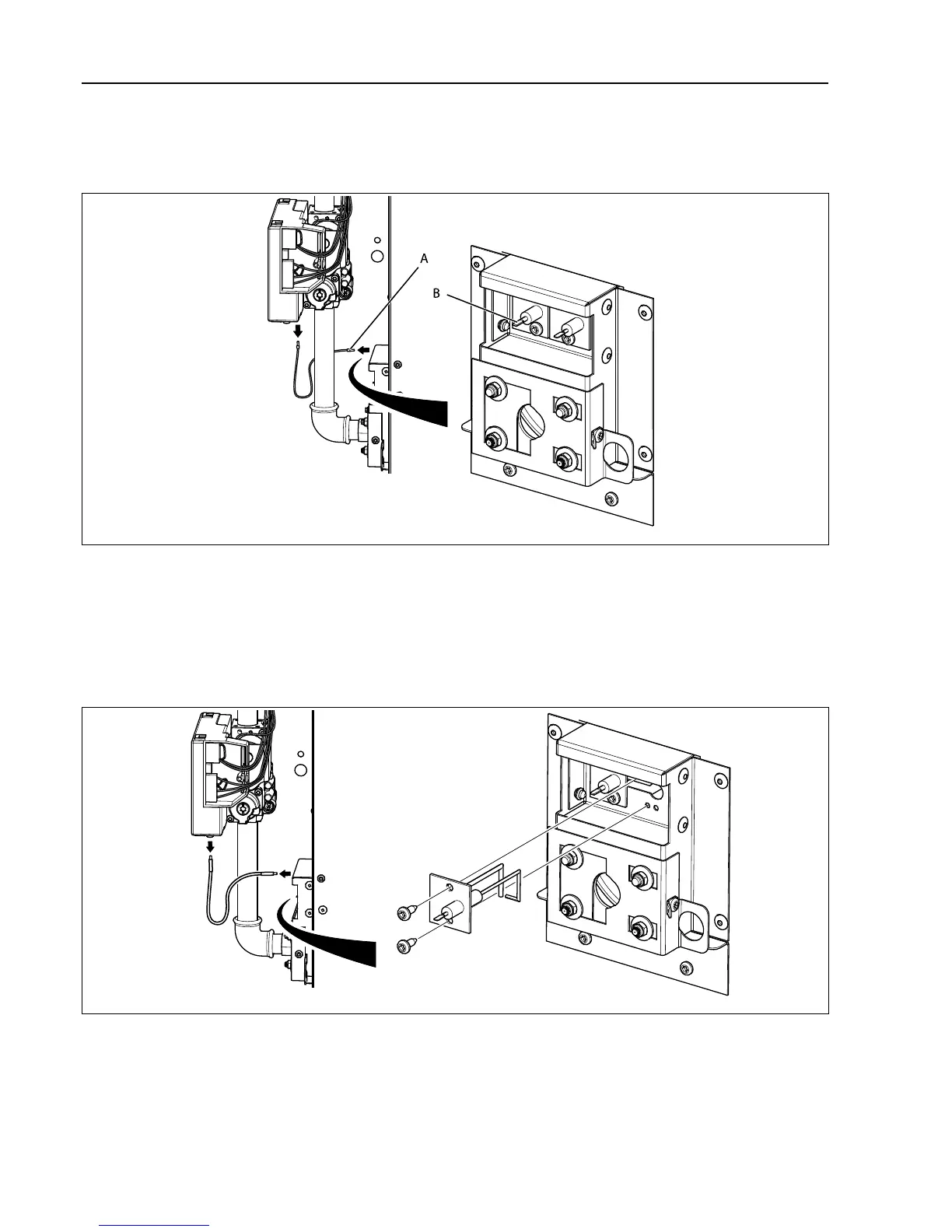

Control measuring the ionization current
Disconnect the wire to the flame sensor.
Measure the current between the quick connector (A) and the ionization connector (B). The current must be at least
0.9 µA DC.
fig.7885
9.5 Replacement of ignition cable
Shut off the manual gas valve.
Disconnect the power to the machine.
Demount the rear panel.
Disconnect the ignition cable.
Demount the ignition electrode.
fig.7886
Mount the new ignition electrode and connect the ignition cable.
